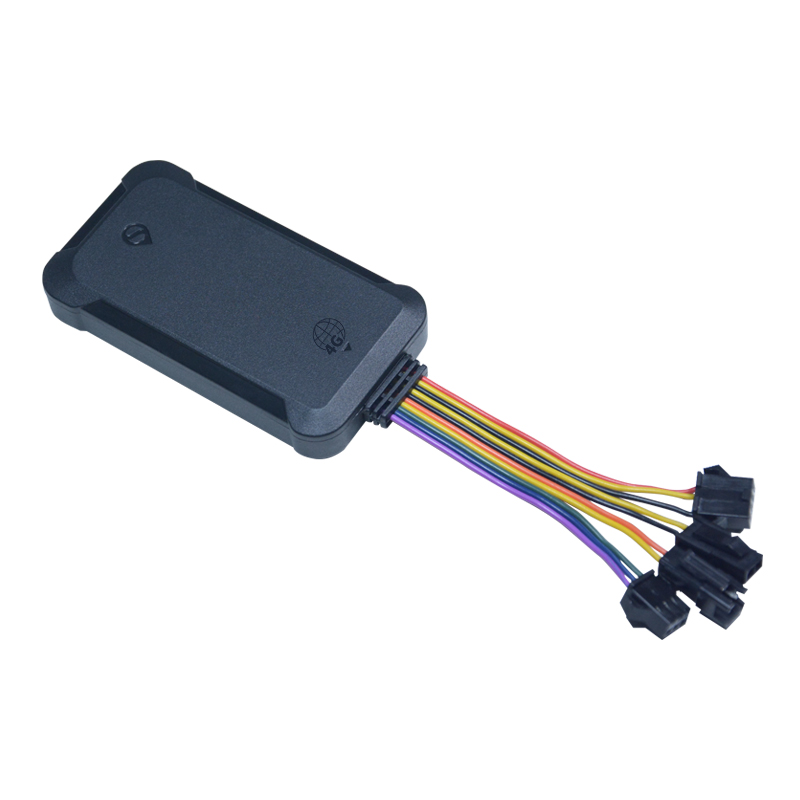

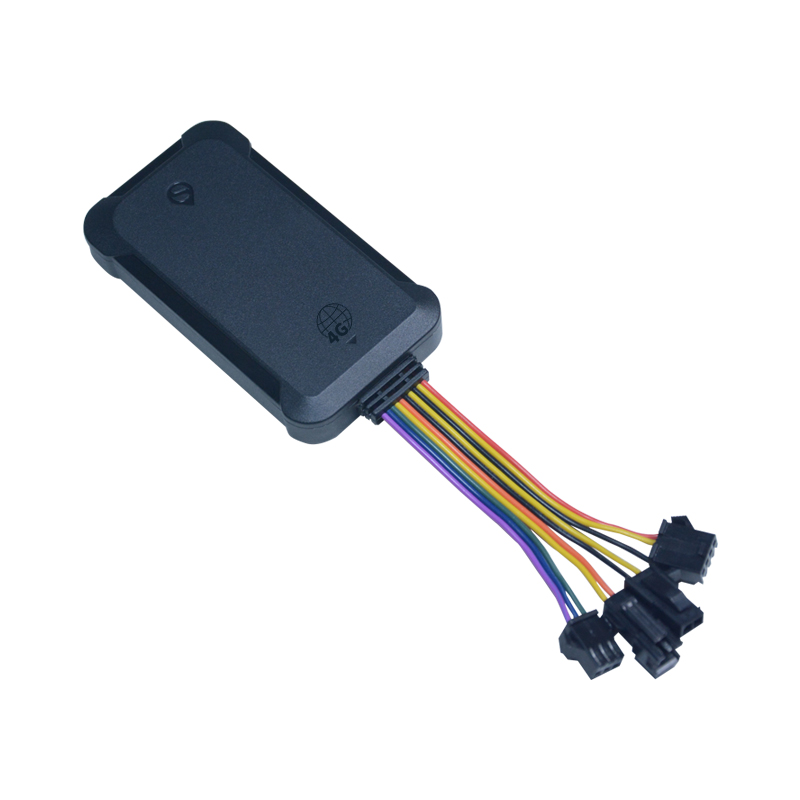

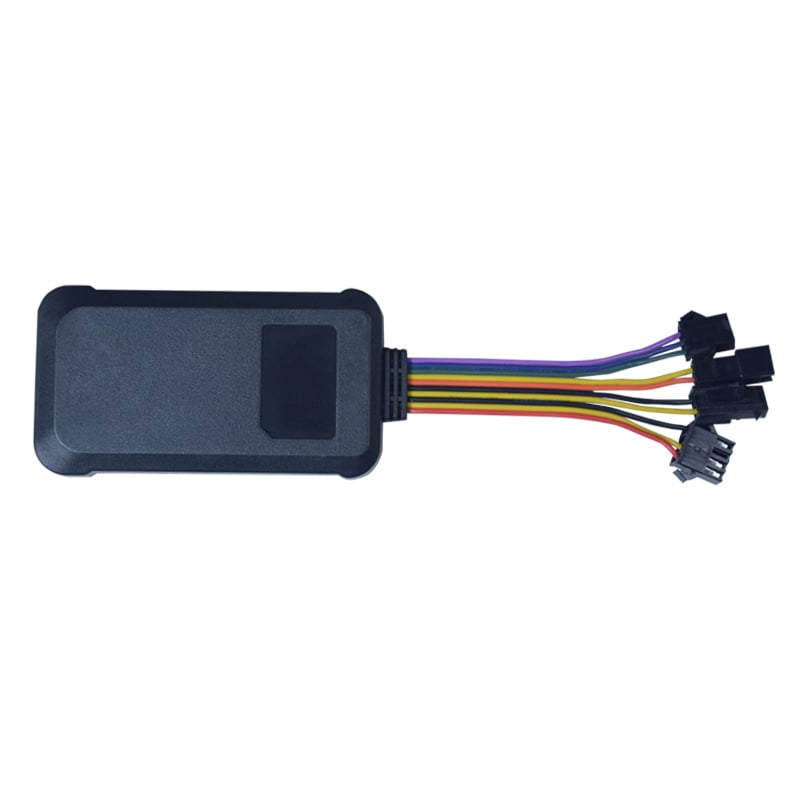

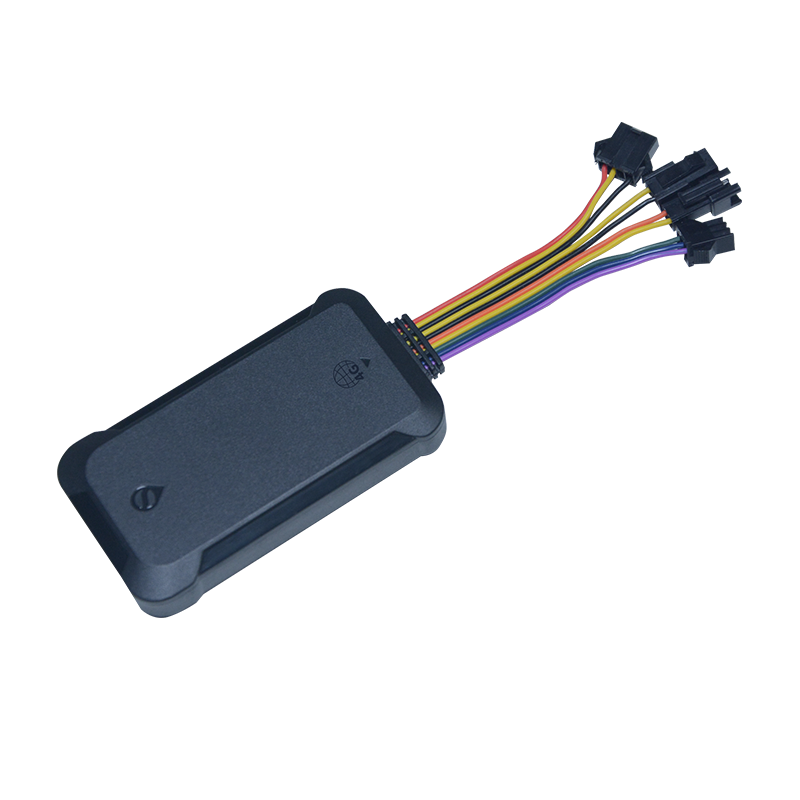

S5L is a 4G vehicle tracker using the latest chip CAT1, supporting GPS/BDS/GLONASS tracking modes, built-in fuel quantity and temperature sensor, temperature loss or oil leakage will be reported immediately, suitable for logistics, truck/fleet management, and so on.
Constantly detect the ACC/ignition status of the vehicle.
Quickly and easily upgrading firmware remotely.
Identify drivers when they start vehicles, and collect and upload the drivers' identification.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Optional peripherals to monitor fuel level or temperature add visibility to your operations and help save money.
Instant alerts for atypical events such as abnormal vibration, SOS, speeding, power-off, geo-fence in/out, etc.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start <2s Avg.cold start <30s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
CN-Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 GSM: 900/1800 MHz EU-Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: 900/1800MHz LA-Version: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B38/B40/B41 GSM: 850/900/1800/1900MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
50mA
|
|
Standby Current
|
3mA
|
|
Battery
|
150mAh
|
|
Memory Capacity
|
1MB
|
|
LED Indication
|
GPS, GSM, Power(Green)
|
|

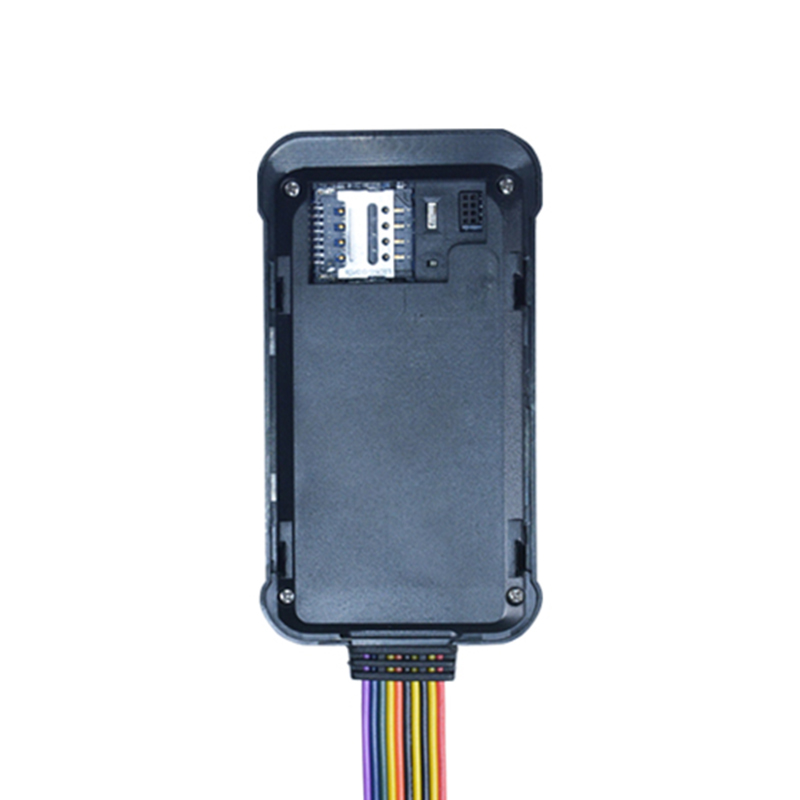

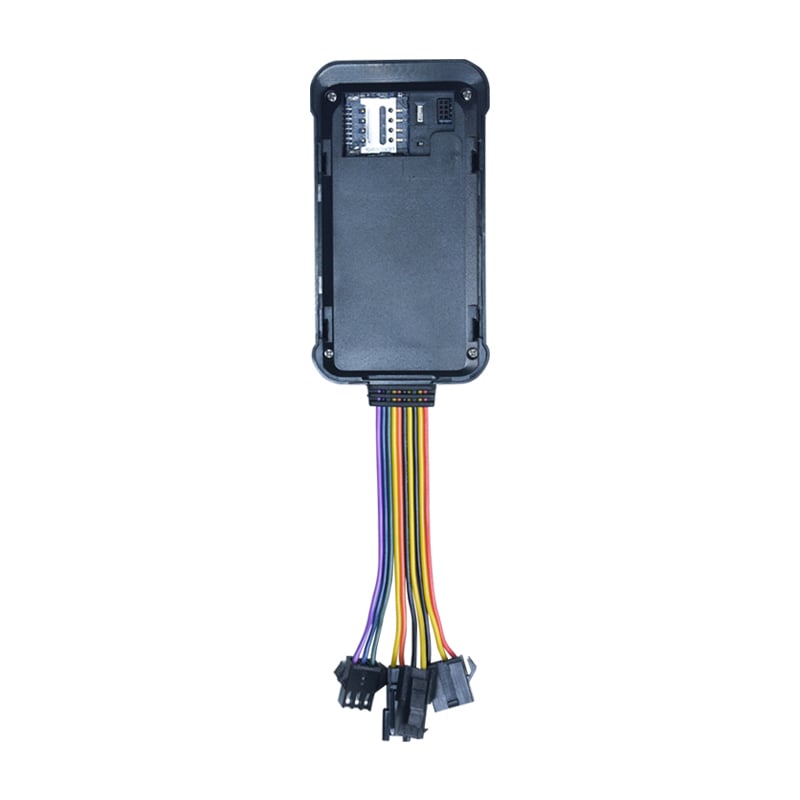

Card Slot
|
Nano SIM
|
Physical

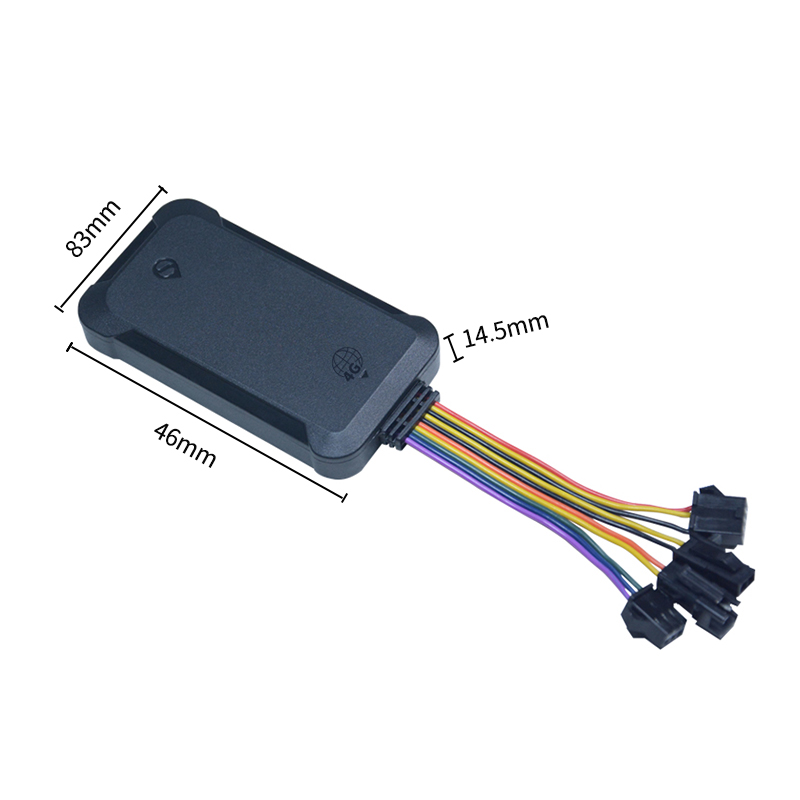

| Dimensions |
83×46×16mm
|
|
Weight
|
60g
|
Environment
|
Operating Temperature
|
-30℃~+75℃
|
|
Operating humidity
|
10%rh~85%rh
|
|
Protection Rating
|
IP65
|
