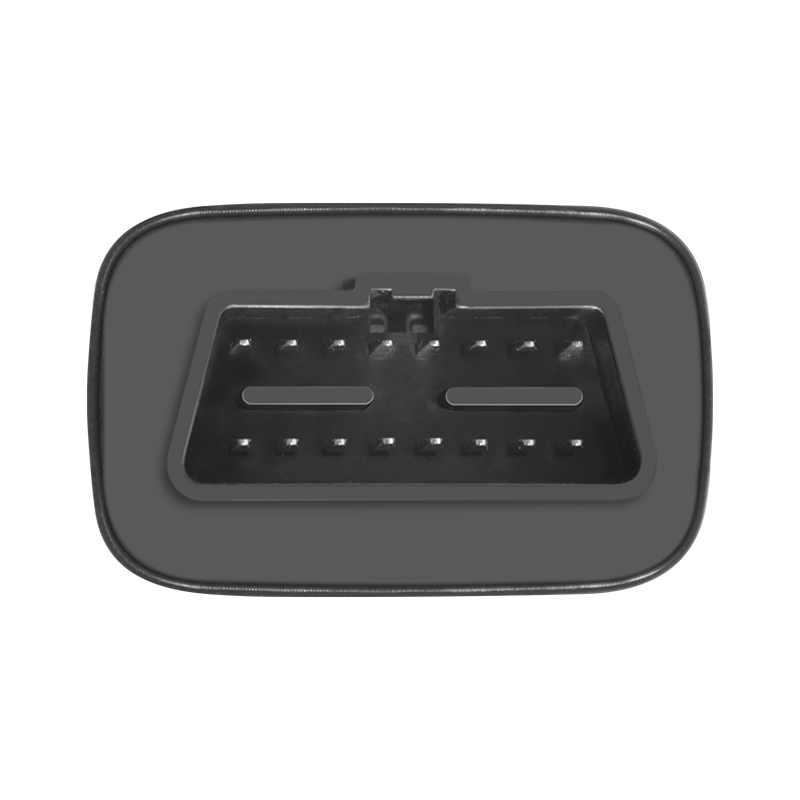

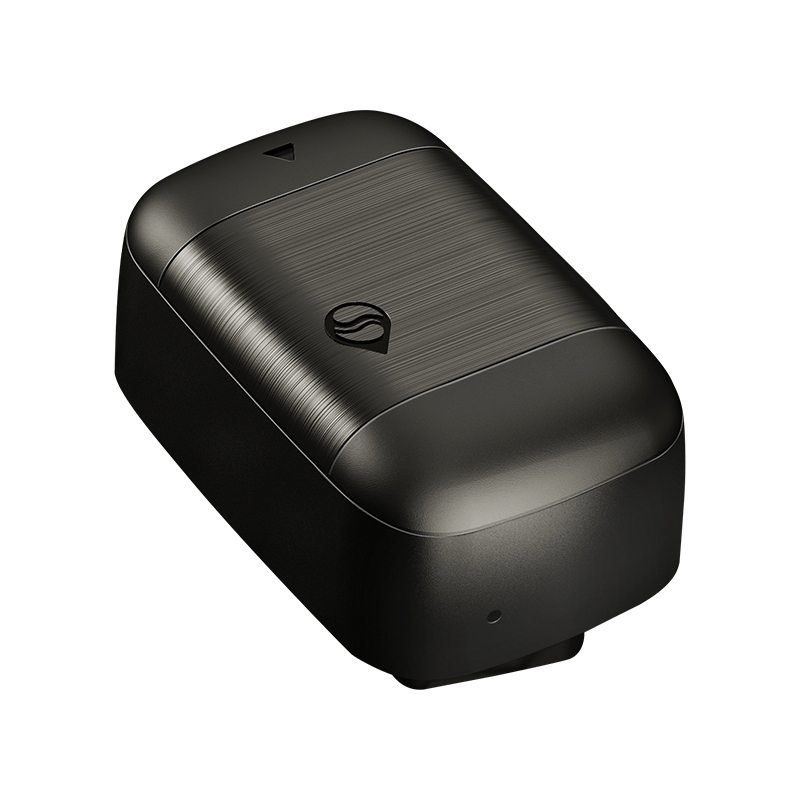

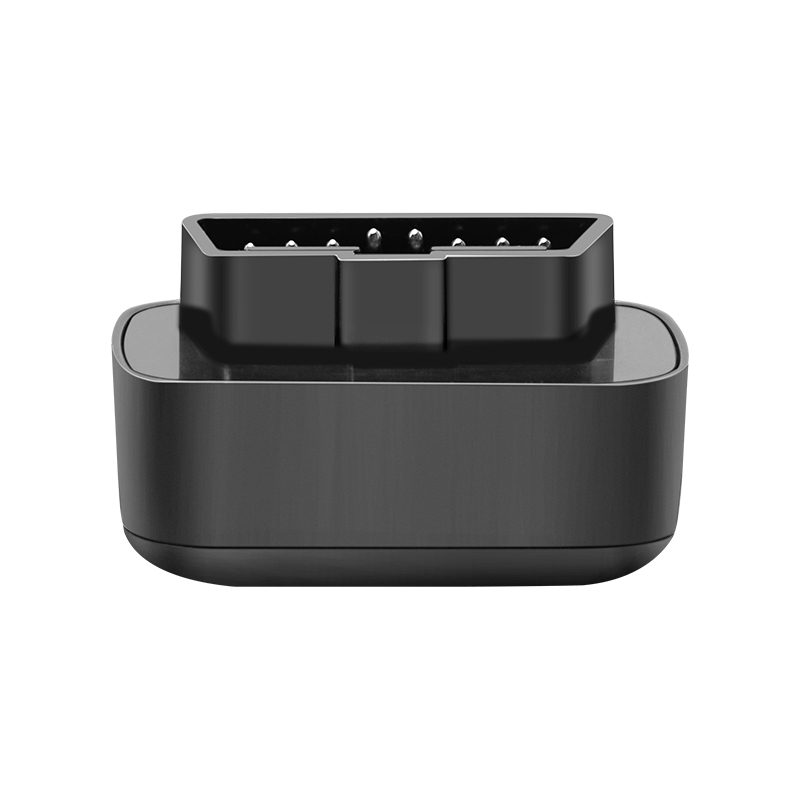

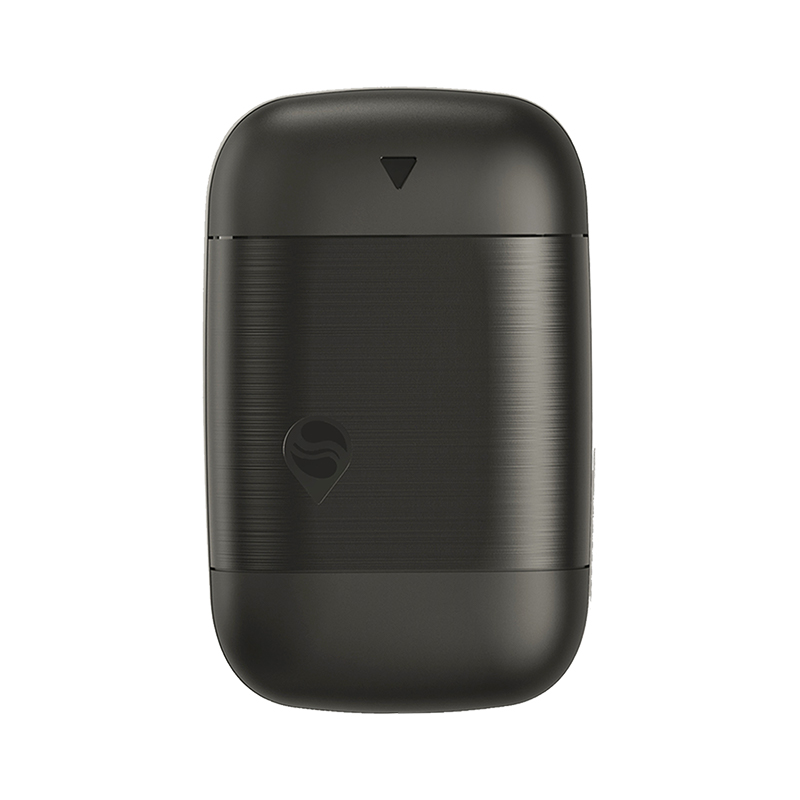

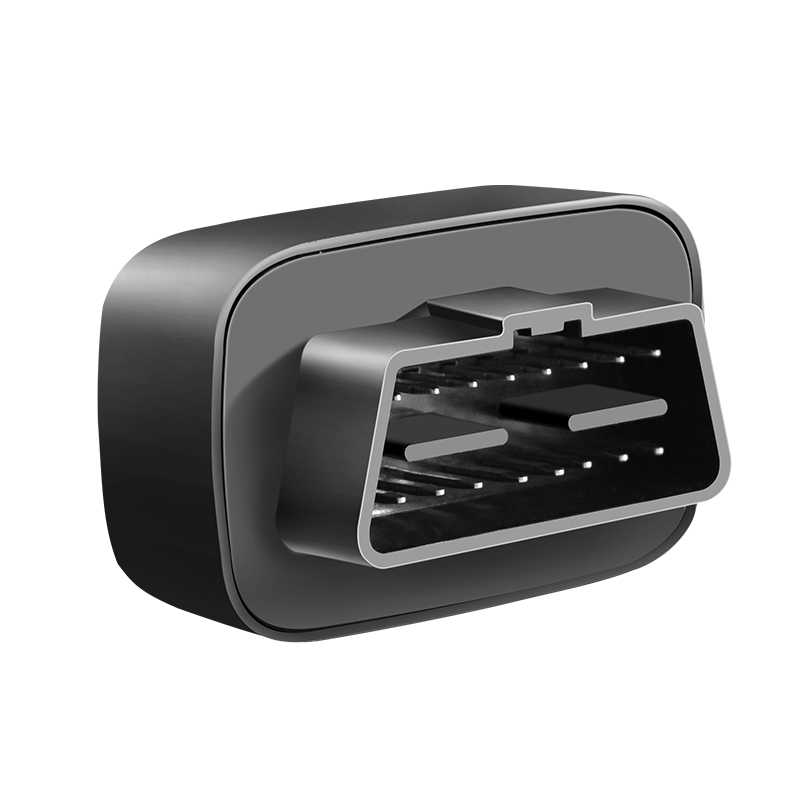

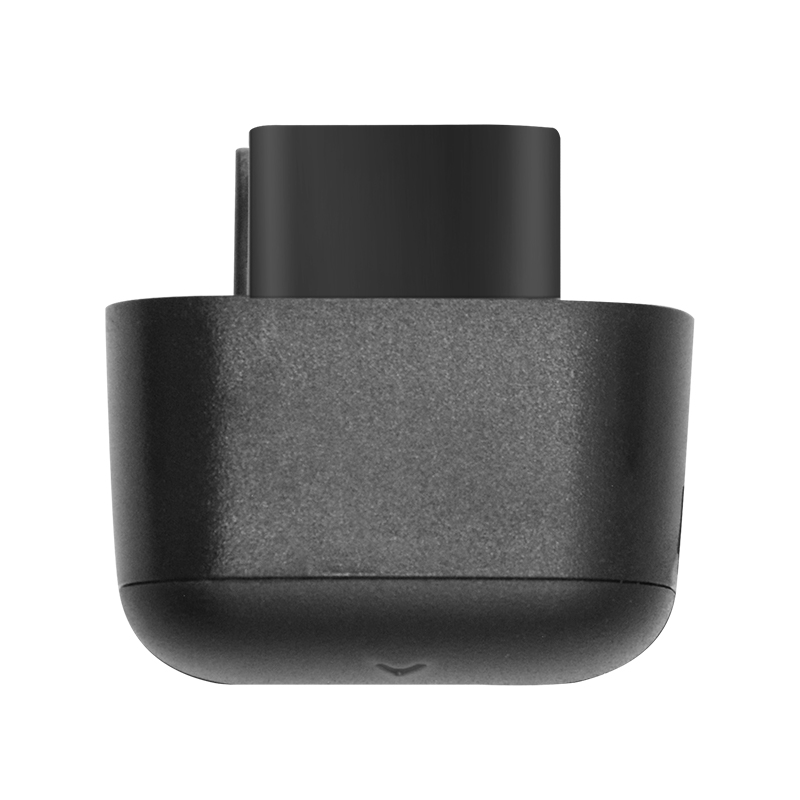

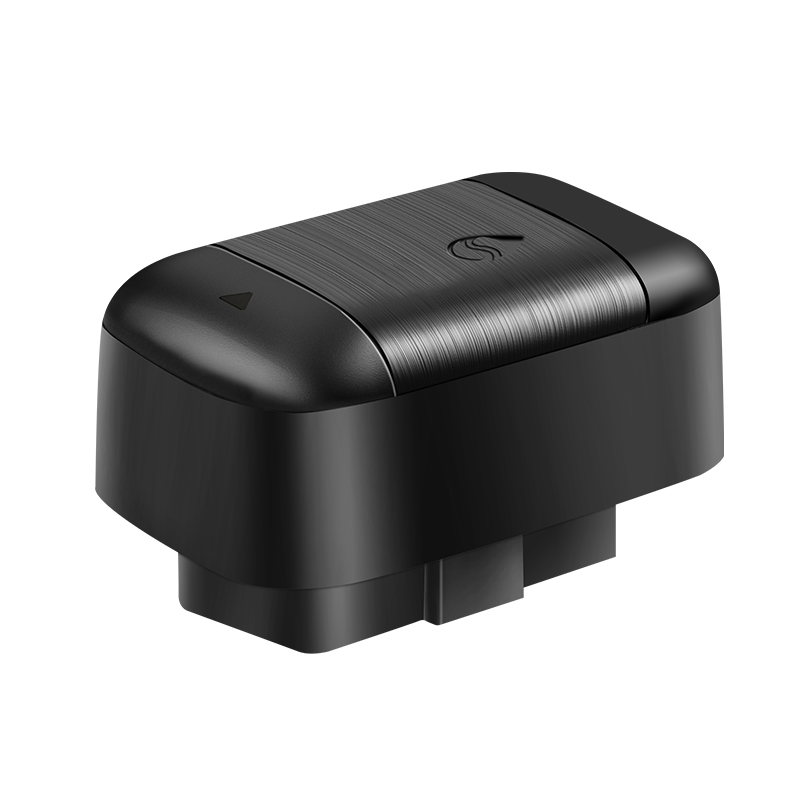

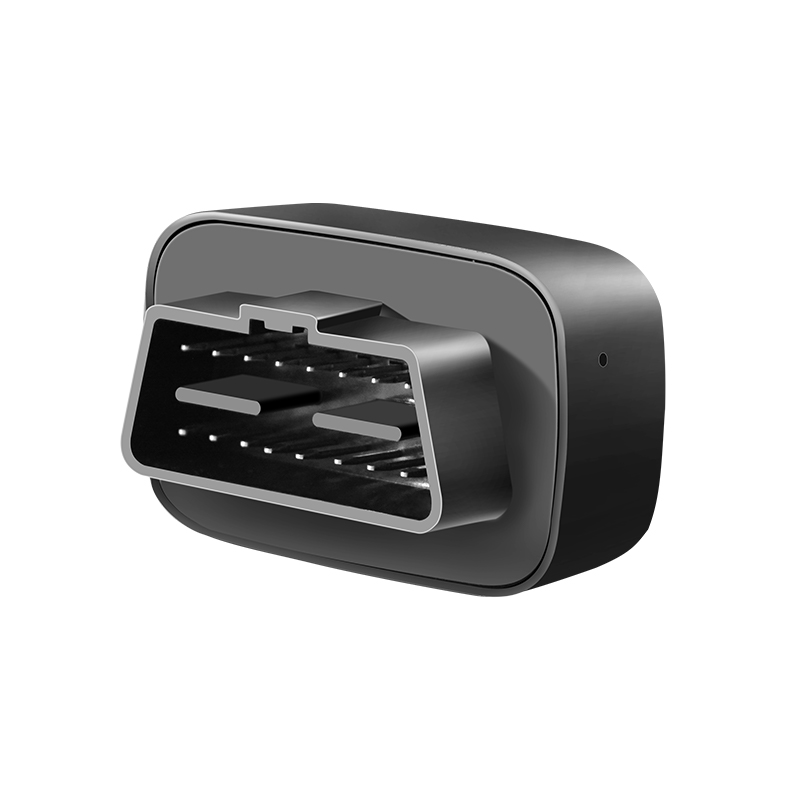

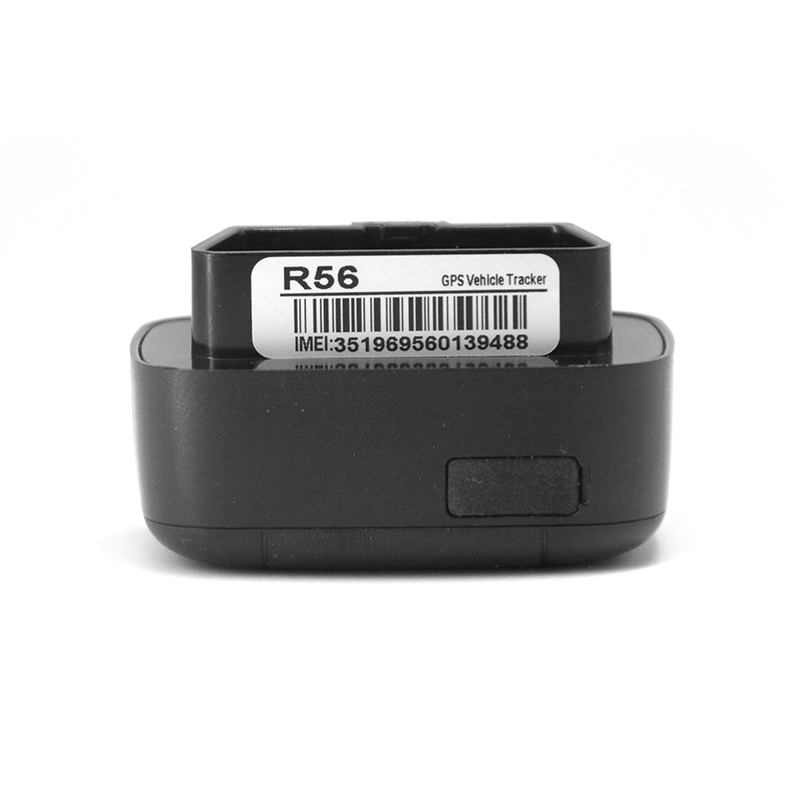

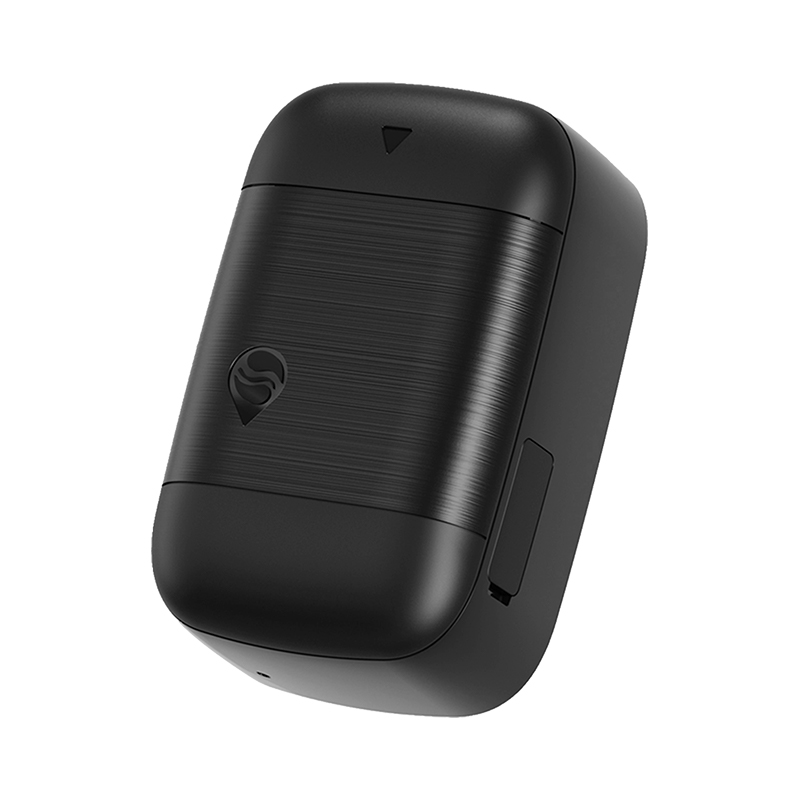

The R56L is a new generation of 4G Cat.1 OBD vehicle tracker for corporate cars, usage-based insurance, fleet management, and individual cars. Support the all-round monitoring of vehicles’real-time status.
Quickly and easily upgrading firmware remotely.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Communication via 4G LTE networks with 2G GSM fallback.
Get overspeed alarm when over the preset value.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start <2s Avg.warm Start <28s Avg.cold start <38s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-36V DC
|
|
Operating Current
|
50mA
|
|
Standby Current
|
5mA
|
|
Battery
|
100mAh
|
|
Memory Capacity
|
16MB |
|
LED Indication
|
GSM (Red), GPS (Blue)
|
|

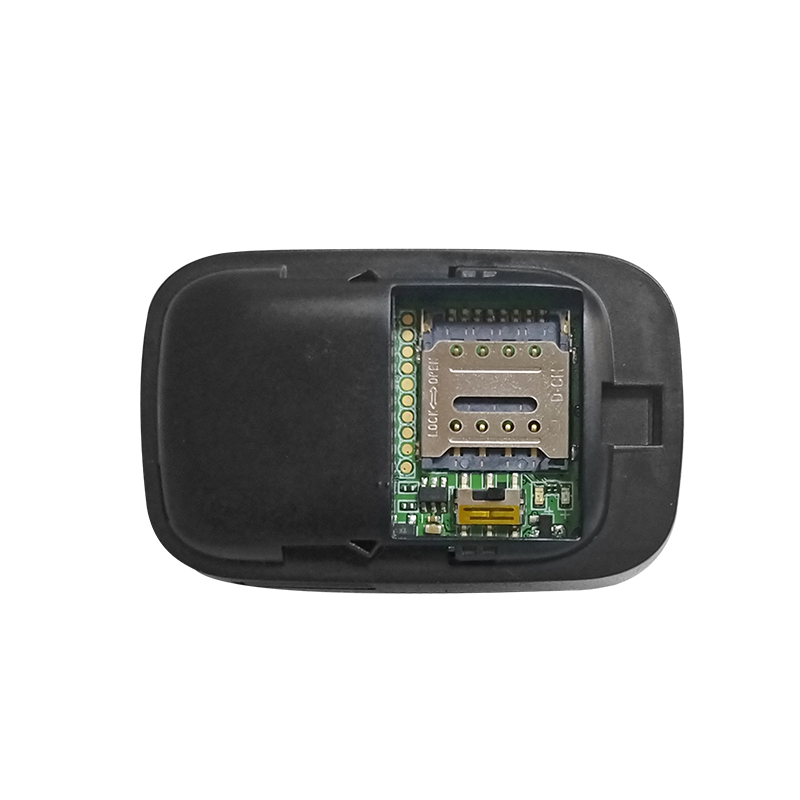

Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
54×34×32 mm |
|
Weight
|
40g
|
Environment
|
Operating Temperature
|
-30℃~+80℃ |
|
Operating humidity
|
10%~85%R |
|
Protection Rating
|
IP65
|
