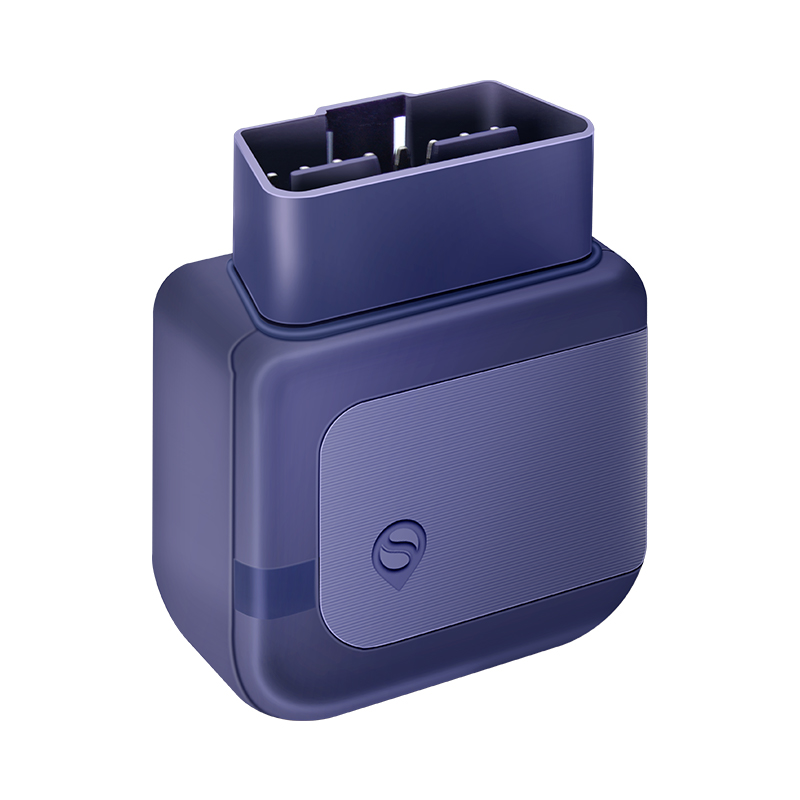

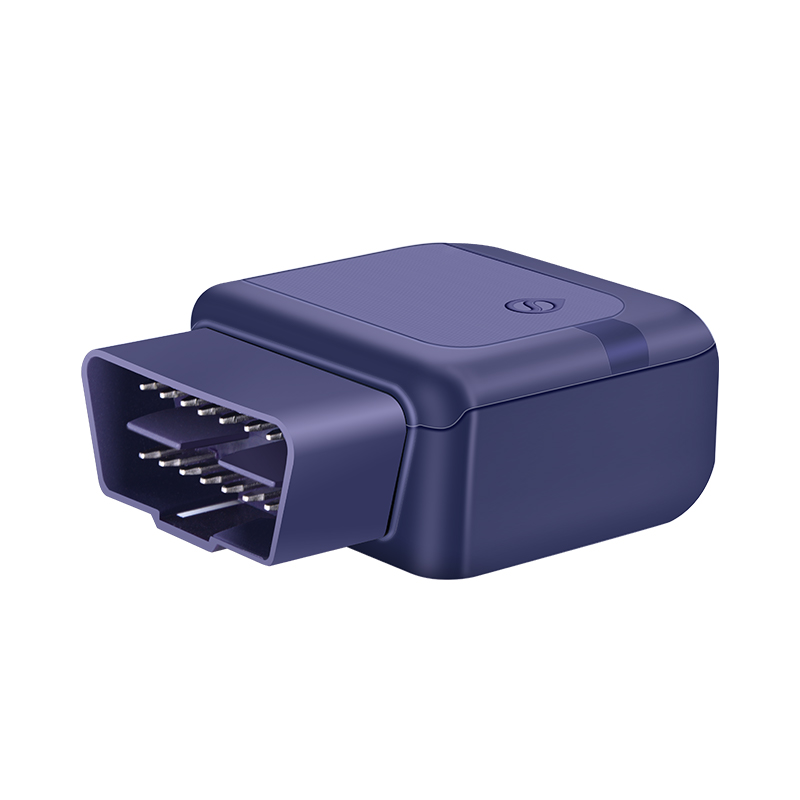

R58L is a 4G LTE OBD II tracker for corporate cars, usage-based insurance, fleet management, and individual cars, which can obtain vehicle data such as fault code, engine speed, water temperature, accumulated mileage, etc. With the UBI-based algorithm for driving behavior analysis, the R58L can accurately analyze the dangerous driving behavior and support the all-round monitoring of vehicles’ real-time status
Simply plug this device into OBD II socket, you don't have to turn to professionals.
Quickly and easily upgrading firmware remotely.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
Receive a notification when a device is accidentally removed from the OBD port.
Obtains real data of vehicle (accurate mileage, fault code, ACC status, battery voltage, engine speed, etc).
*Harsh acceleration
*Harsh braking
*Harsh cornering
*Collision
Possibly prevent vehicle accidents
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start ≤5s Avg.cold start ≤30s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
GL-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD 34/B38/B39/B40/B41 GSM 900/1800 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-36V DC
|
|
Operating Current
|
80mA
|
|
Standby Current
|
7mA
|
|
Battery
|
130mAh
|
|
Memory Capacity
|
4MB |
|
LED Indication
|
GPS(Green)，GSM(Red)，CAN (Blue
|
|
Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
66×50×25 mm |
|
Weight
|
62g
|
Environment
|
Operating Temperature
|
-40℃～＋80℃ |
|
Operating humidity
|
10%-80% RH |
|
Protection Rating
|
IP65
|
