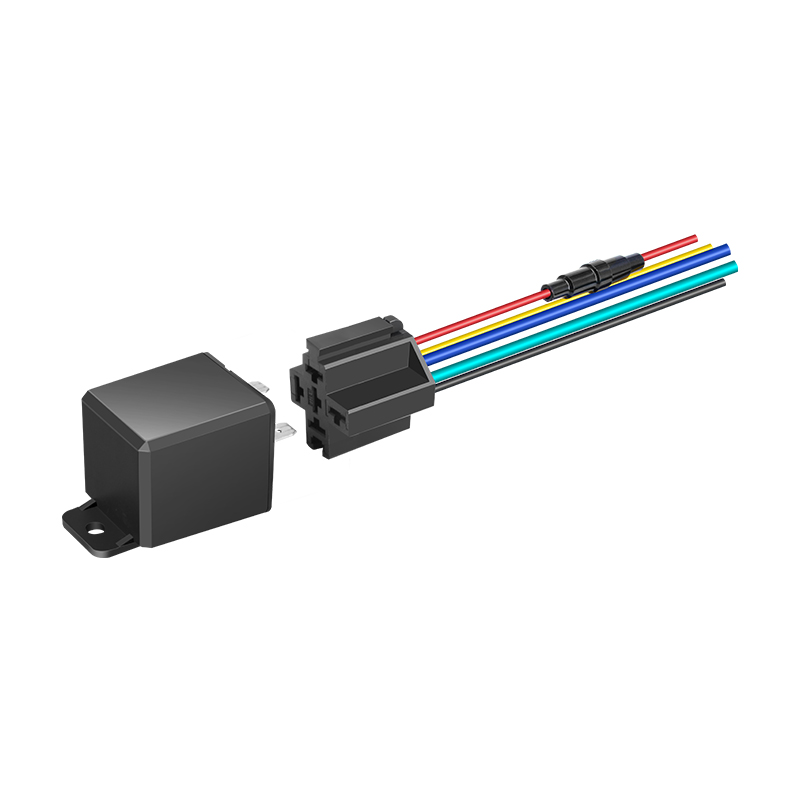

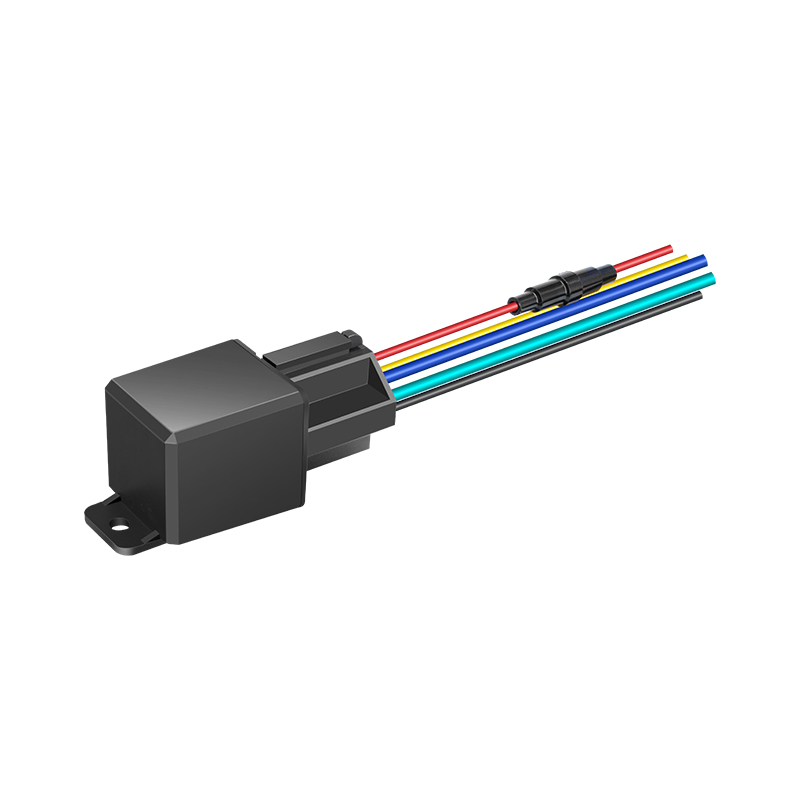

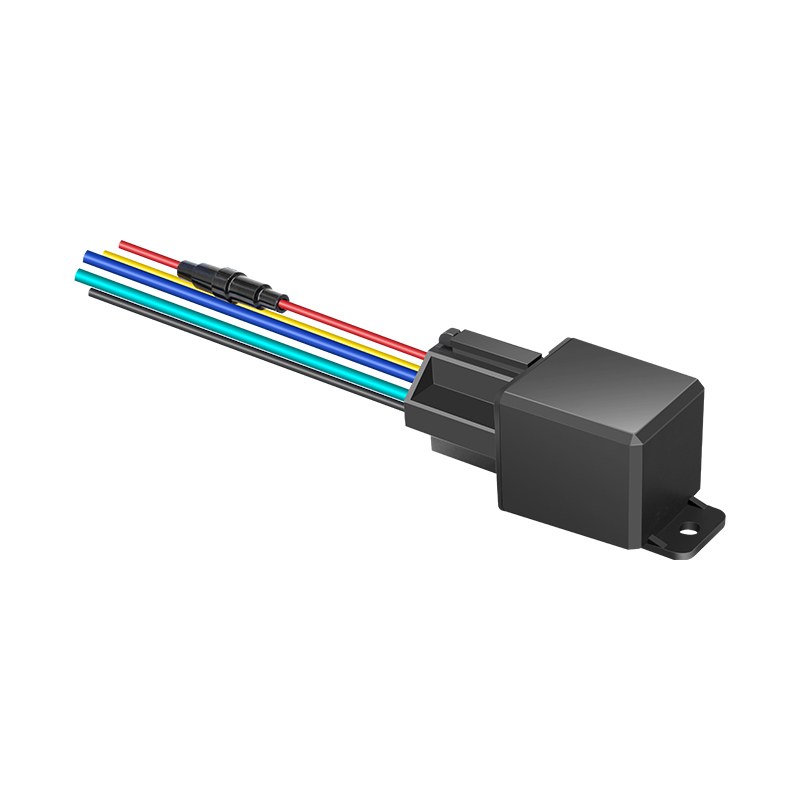

S710L is a 4G Relay GPS tracker. lt has a strong concealment with its imitated shape relay, supports BDS/GPS/GNSS positioning, suitable for anti-theft in logistics, automotive, fleet management.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Constantly detect the ACC/ignition status of the vehicle.
Communication via 4G LTE networks with 2G GSM fallback.
Quickly and easily upgrading firmware remotely.
Get instant alerts when an interruption of power supply is detected.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <32s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-95V DC
|
|
Operating Current
|
61mA
|
|
Standby Current
|
12mA
|
|
Battery
|
60mAh
|
|
Memory Capacity
|
32MB |
|
LED Indication
|
GSM (Yellow), GPS (Blue)
|
|
Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
57×33×32.5 mm
|
|
Weight
|
42g
|
Environment
|
Operating Temperature
|
-20℃~ +75℃
|
|
Operating humidity
|
10%～80%RH
|
