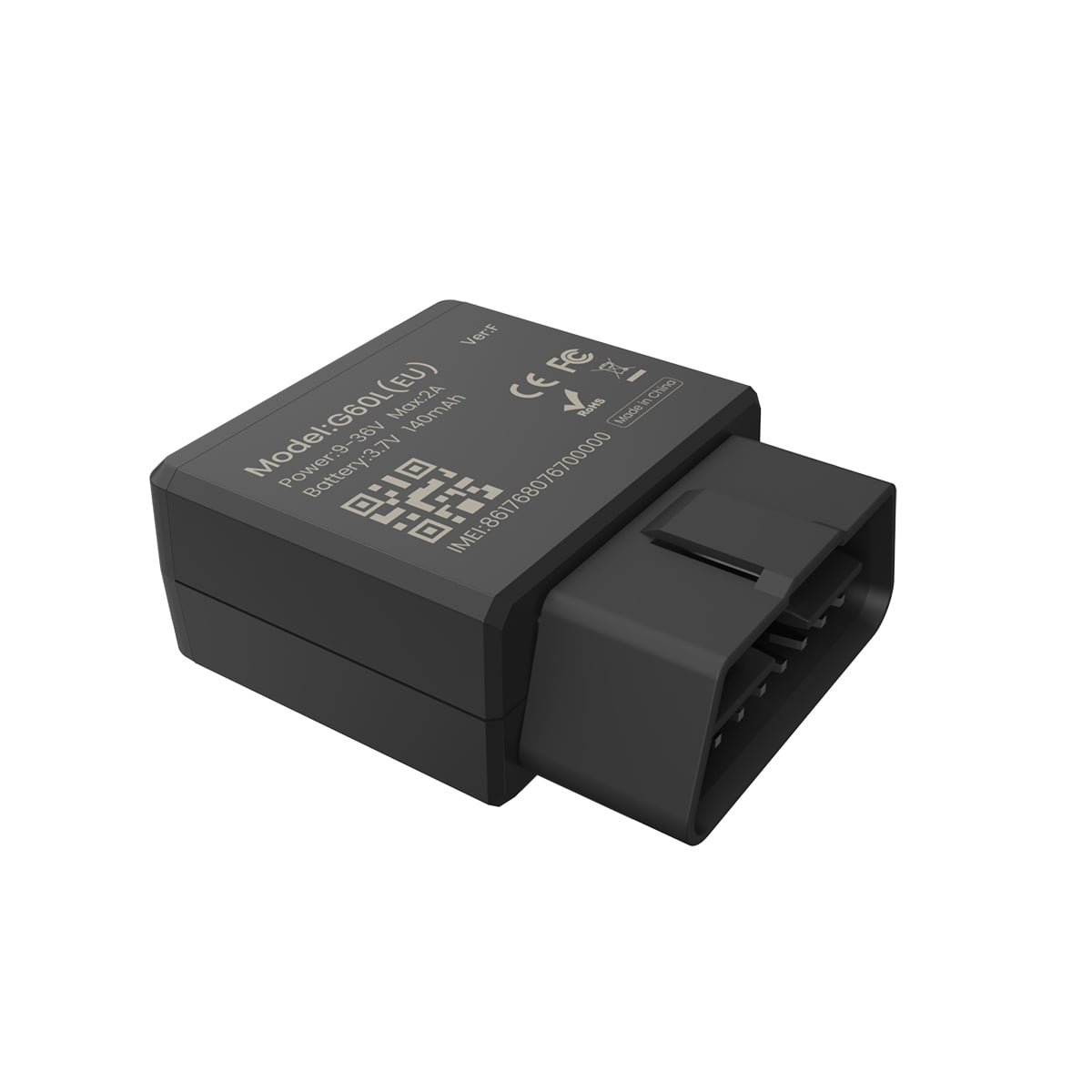

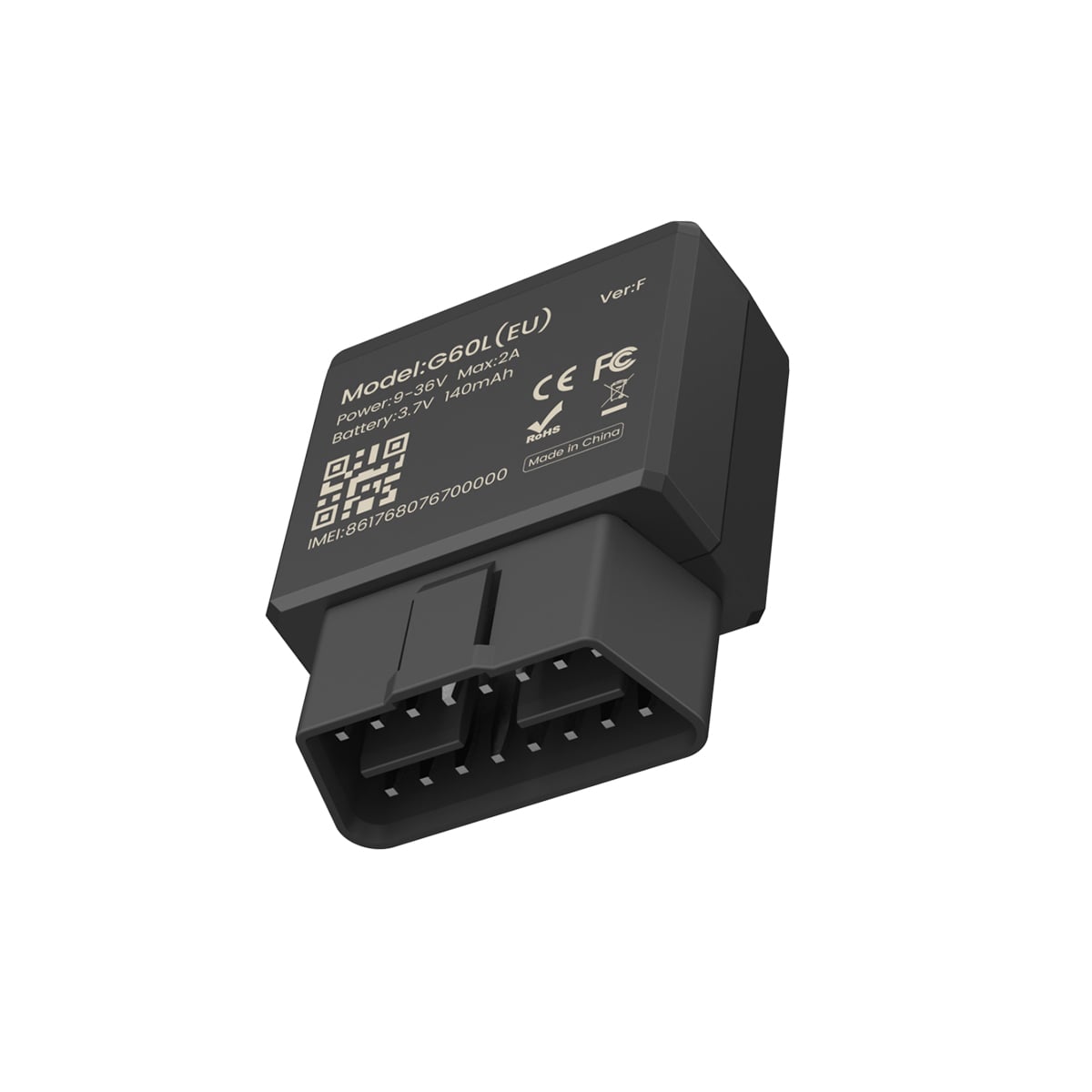

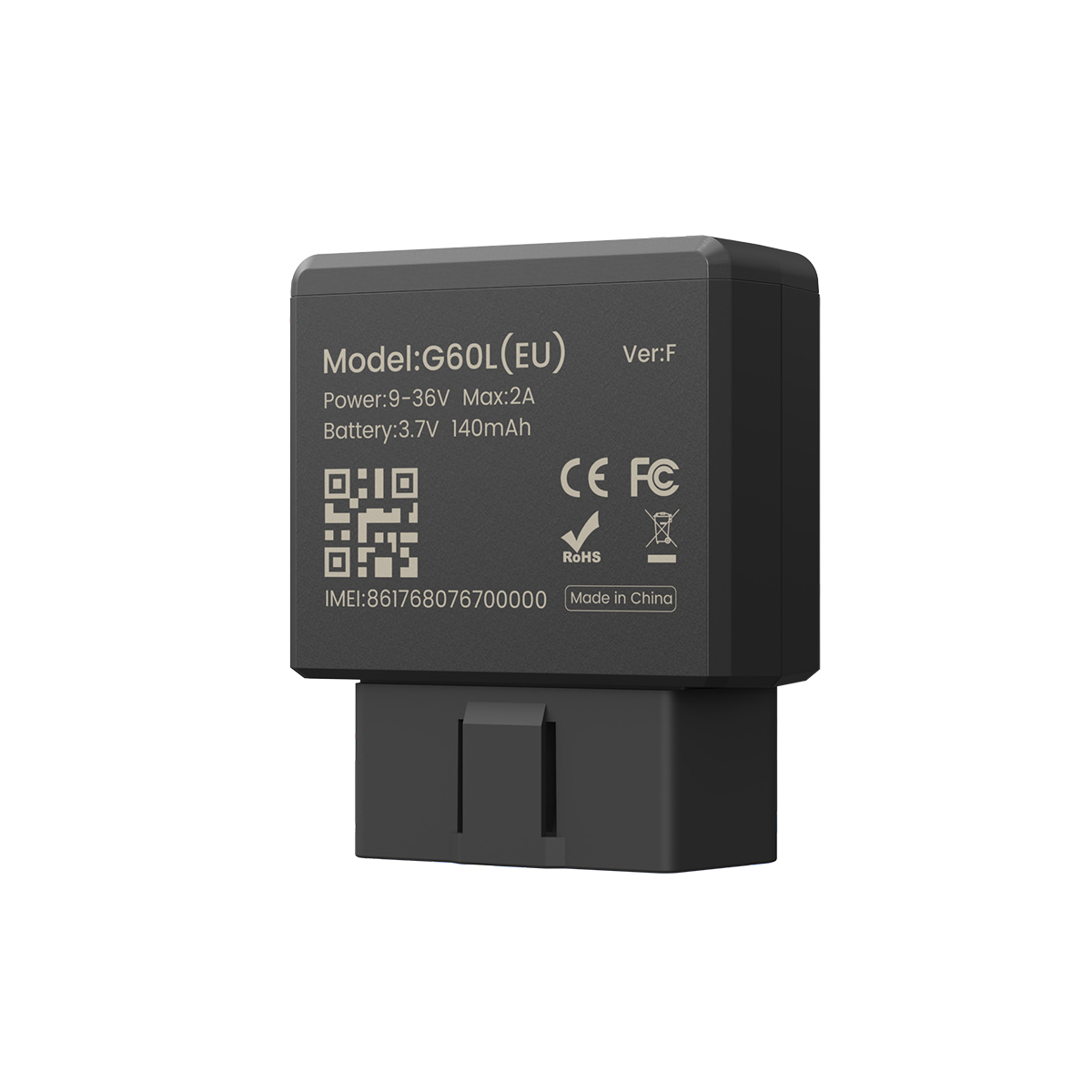

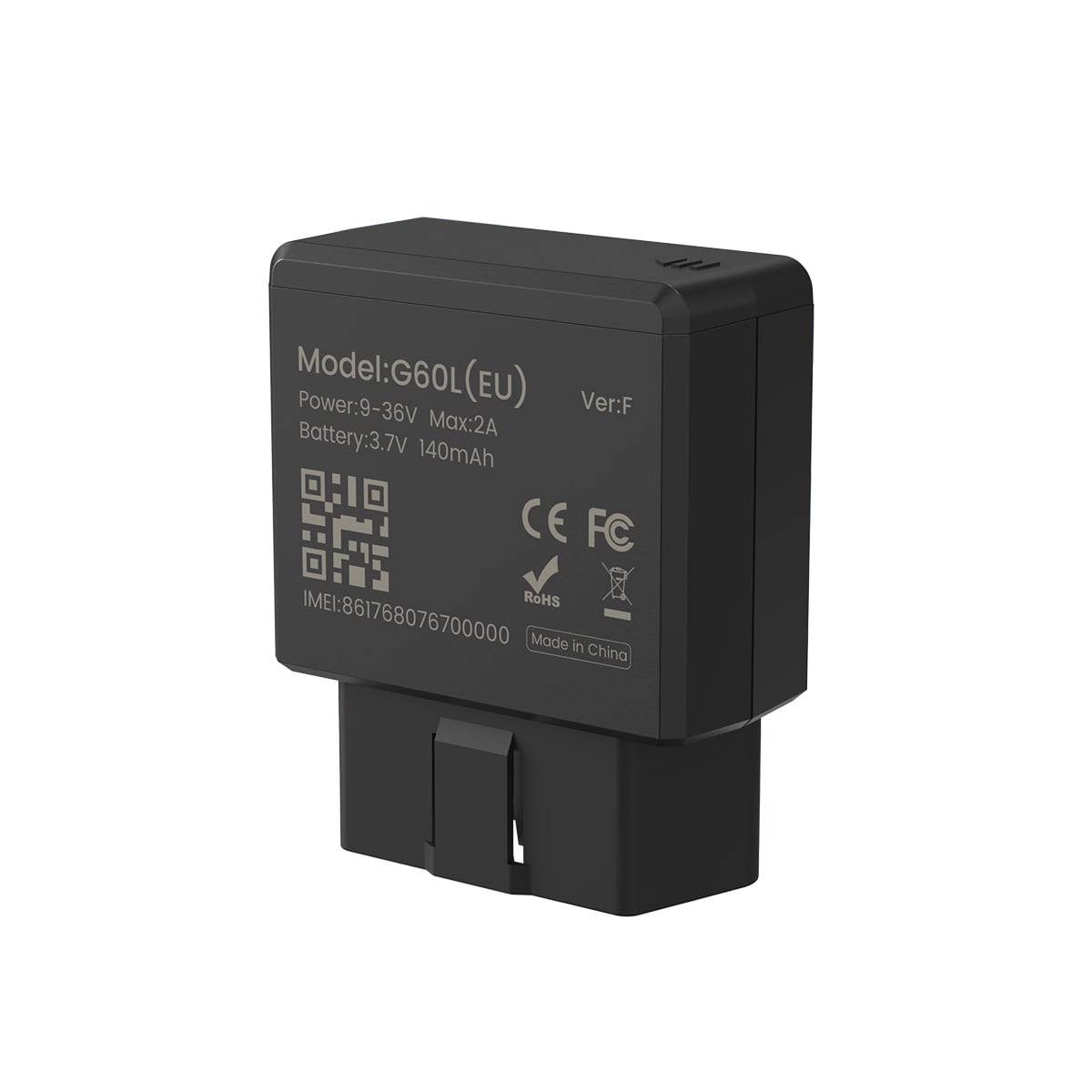

G60L is a 4G OBD vehicle tracker that supports precise driving behavior recognition and boasts excellent positioning, tracking, reporting, recording, and safety features. It supports BDS/GPS/GLONASS/Galileo positioning technologies and is suitable for UBI car insurance and car rental.
Quickly and easily upgrading firmware remotely.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Possibly prevent vehicle accidents.
Get overspeed alarm when over the preset value.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out.
Communicates via a 4G LTE network.
GNSS
|
Positioning Mode |
BDS,GPS,GLONASS,Galileo |
|
Positioning Band |
L1,B1 |
|
Positioning Precision |
<2.5m CEP |
|
Tracking Sensitivity |
-162dBm |
|
Capturing Sensitivity |
-148dBm |
|
Positioning Time |
Avg.hot start <2s Avg.warm Start <28s Avg.cold start <38s |
Communication
|
Communication Standard |
LTE Cat1 |
|
Communication Frequency |
EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 /B28 LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 |
Operating
|
Operating Voltage |
9-50V DC |
|
Operating Current |
29mA |
|
Standby Current |
6mA |
|
Battery |
140mAh |
|
Memory Capacity |
4 MB+4 MB |
|
LED Indication |
GPS(Blue),GSM(Green) ,Power(Red) |
|
Card Slot |
Nano SIM |
Physical
|
Dimensions |
46×22×55.5 mm |
|
Weight |
40g |
|
Environment |
|
|
Operating Temperature |
-20℃~+70℃ |
|
Operating humidity |
10%~85%RH |
|
Protection Rating |
IP54 |
