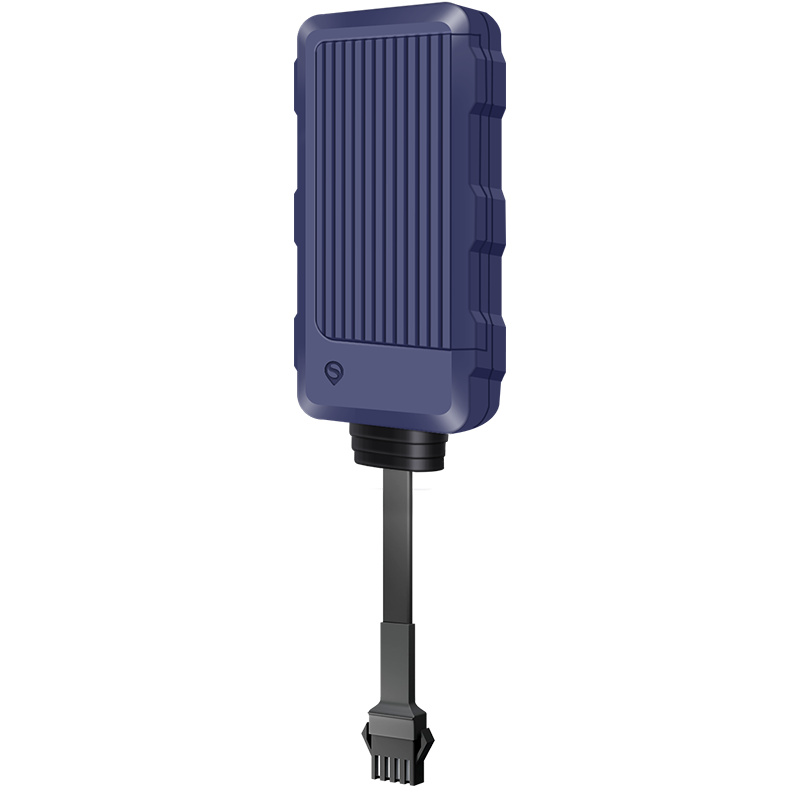

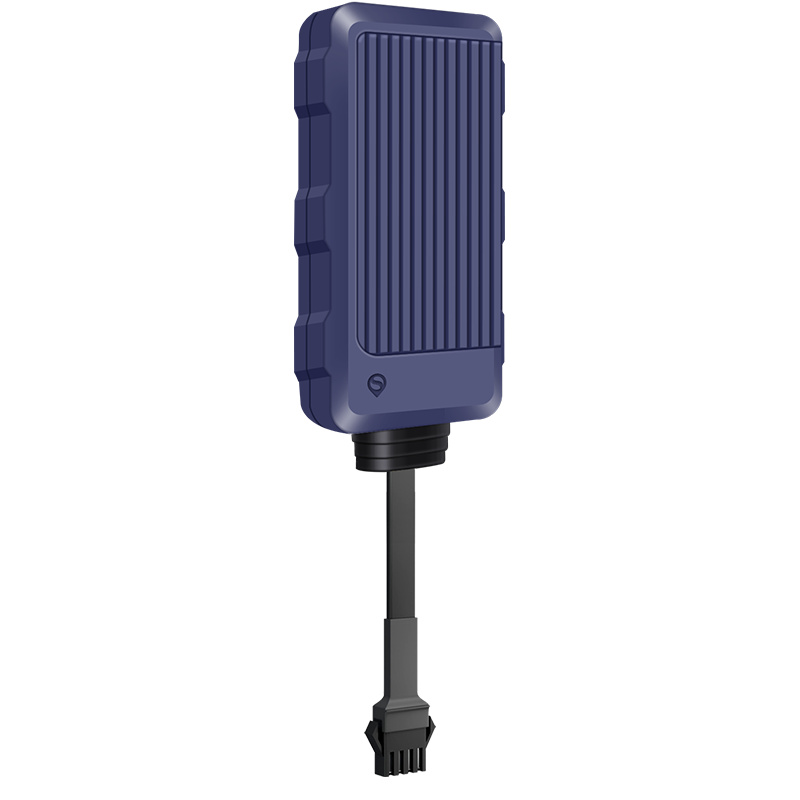

This tracker adopts GPS/BDS/GLONASS/Galileo multi-positioning technology so as to make the tracking signal can easily cover most of the land areas around the world. With more than a dozen kinds of alarm functions, it can effectively reduce the occurrence of vehicle theft, and is suitable for fleet management, car leasing, and private car management.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Get instant alerts when an interruption of power supply is detected.
Quickly and easily upgrading firmware remotely.
Constantly detect the ACC/ignition status of the vehicle.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -160dBm |
| Capturing Sensitivity | -158dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <28s |
| Antenna Dimensions | 25mmx25mmx4mm |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
GL-Version: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B34/B38/B39/B40/B41 GSM:850/900/1800/1900 MHz |
|
Max Output Power
|
33土2dBm
|
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
55mA
|
|
Standby Current
|
8mA
|
|
Battery
|
180mAh
|
|
Memory Capacity
|
64MB
|
|
LED Indication
|
GPS(Blue), GSM(Yellow), Power(Red)
|
|
Card Slot
|
Nano SIM
|
Physical
| Dimensions |
86.5 × 44.5 × 16mm
|
|
Weight
|
58g
|
Environment
|
Operating Temperature
|
-20℃~+60℃ |
