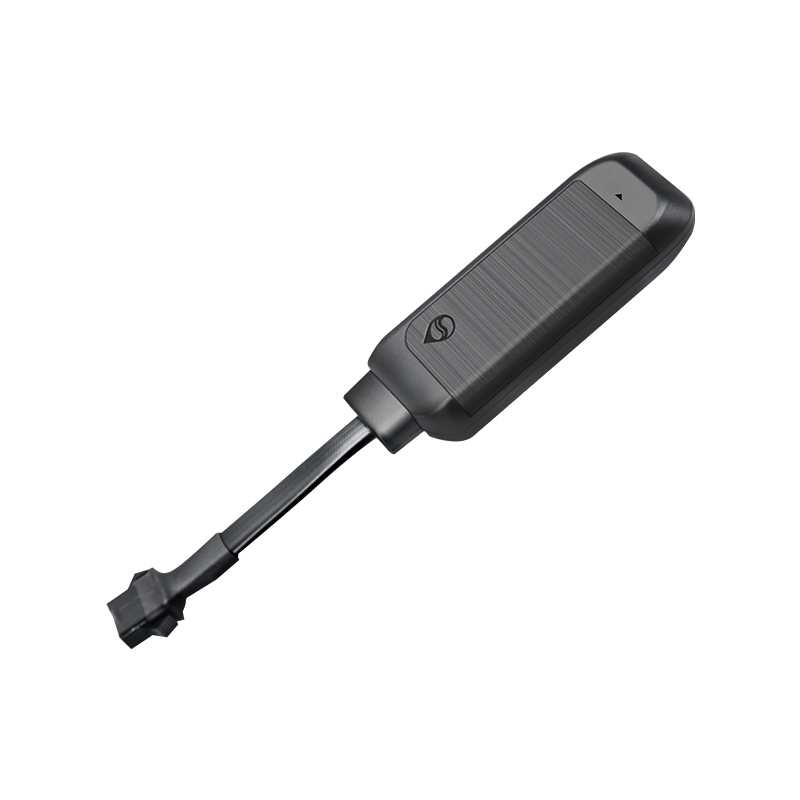

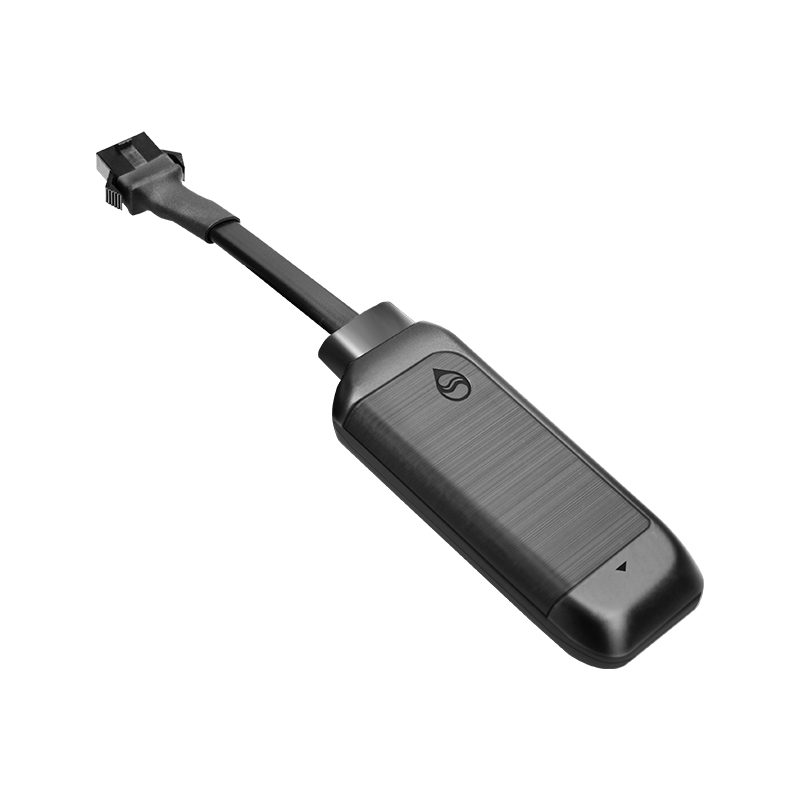

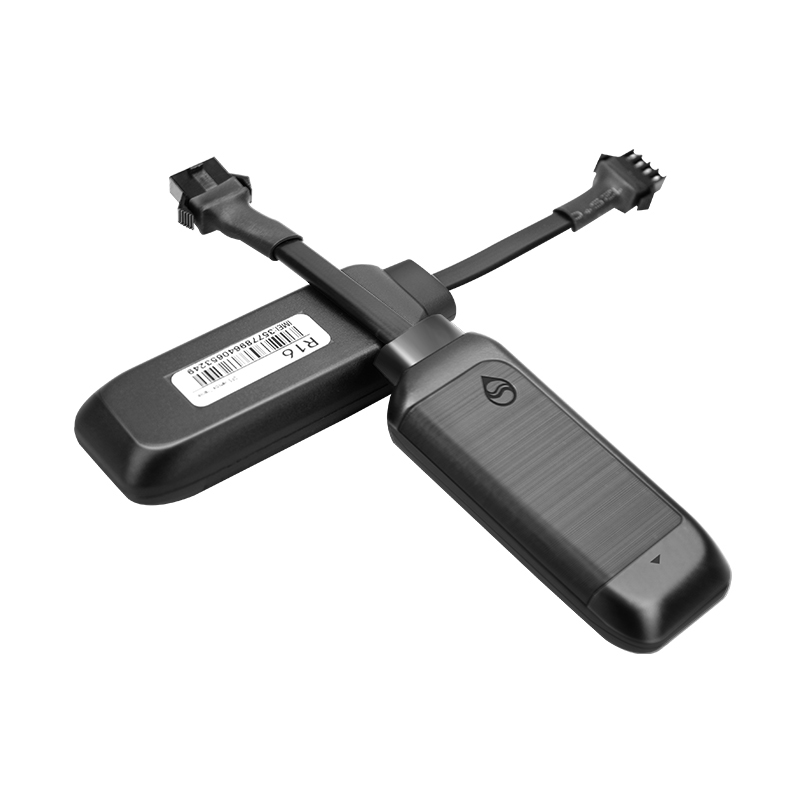

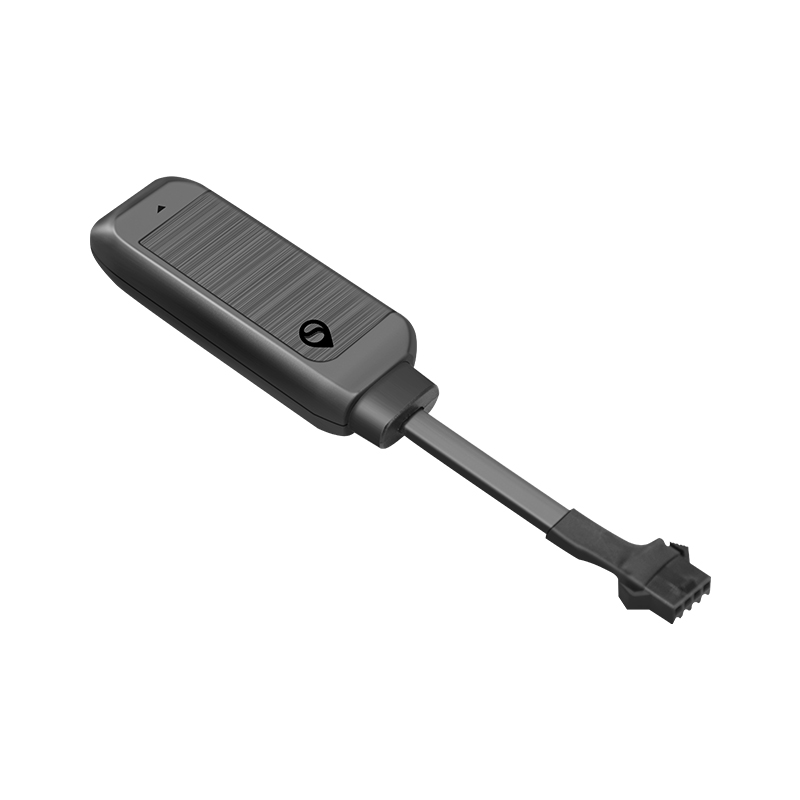

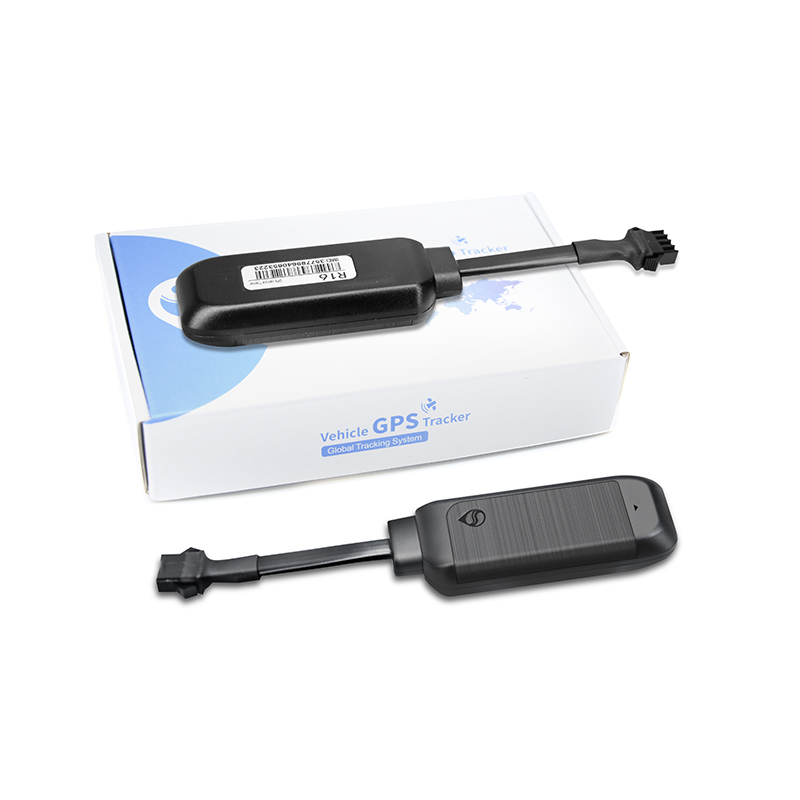

R16 is a cost-efficient stable small GPS tracker, which has 4 wires and support engine cut-off. On the basis of the GPS/BDS satellites technology, it boasts real time tracking updated every 10 seconds. Perfect for car rental, fleet management and logistics.
Constantly detect the ACC/ignition status of the vehicle.
Ideal for the installation in a small space to maximize noticeability.
Quickly and easily upgrading firmware remotely.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Optimized battery protection prevents vehicle batteries from draining out or damage.
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start <10s Avg.cold start <32s |
Communication
|
Communication Standard
|
GSM
|
|
Communication Frequency
|
850/900/1800/1900Mhz |
|
Max Output Power
|
GSM: 30dBm±2dBm |
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
30mA
|
|
Standby Current
|
5mA
|
|
Battery
|
100mAh
|
|
Memory Capacity
|
32MB+32MB |
|
LED Indication
|
GSM，GPS(Red)
|
|
Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
77×28×14.5 mm |
|
Weight
|
29g
|
Environment
|
Operating Temperature
|
-20℃~+70℃
|
|
Operating humidity
|
20%～90%RH
|
|
Protection Rating
|
IP65
|
