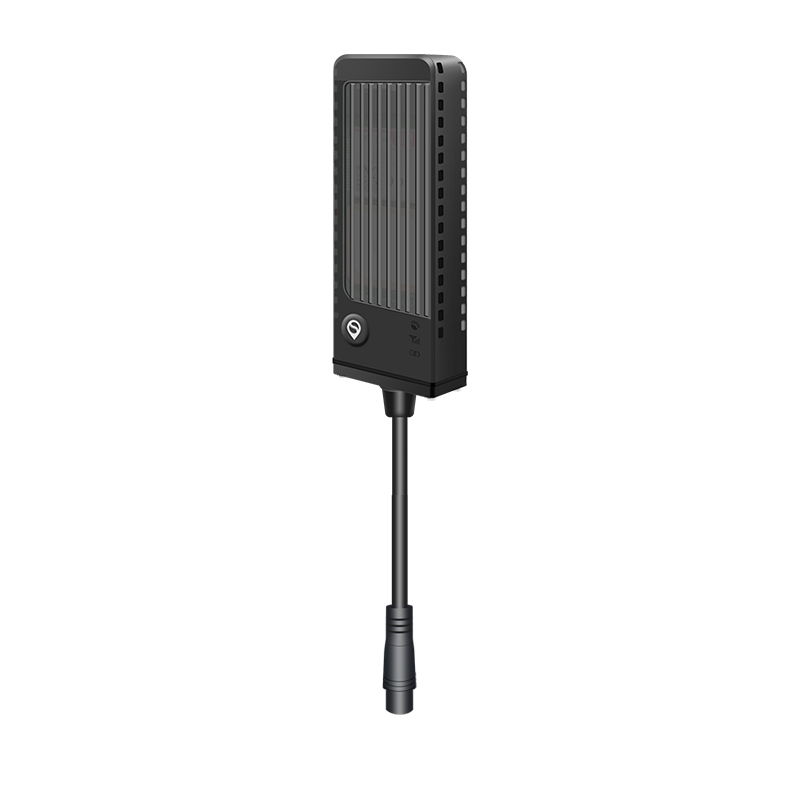

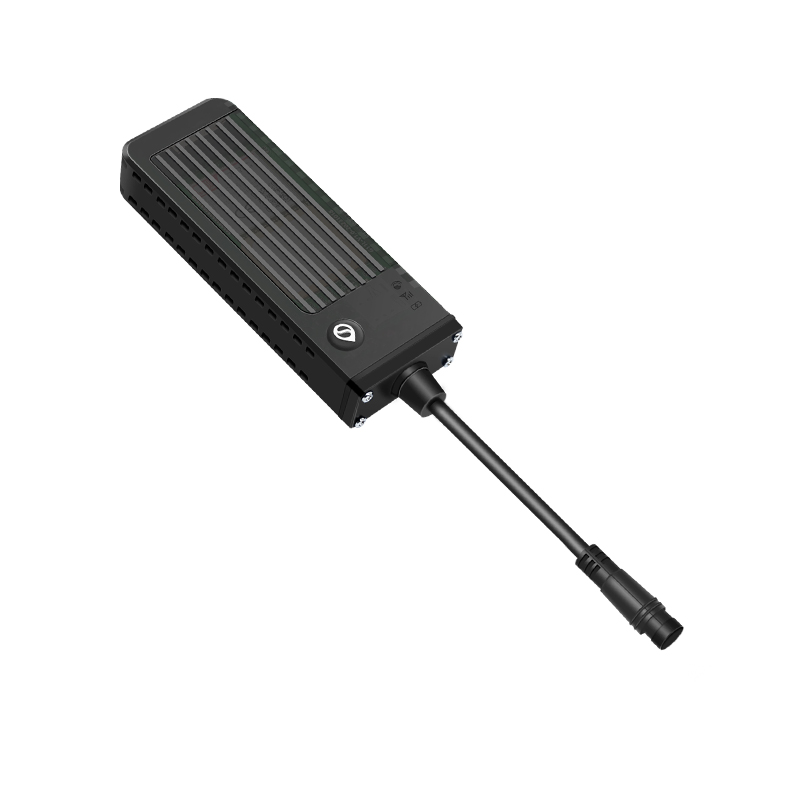

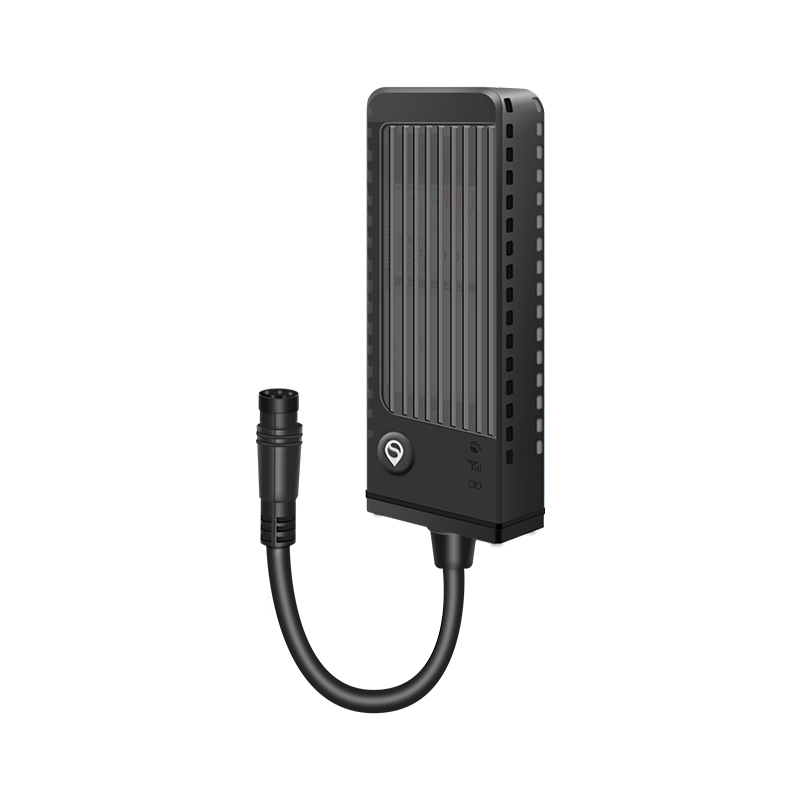

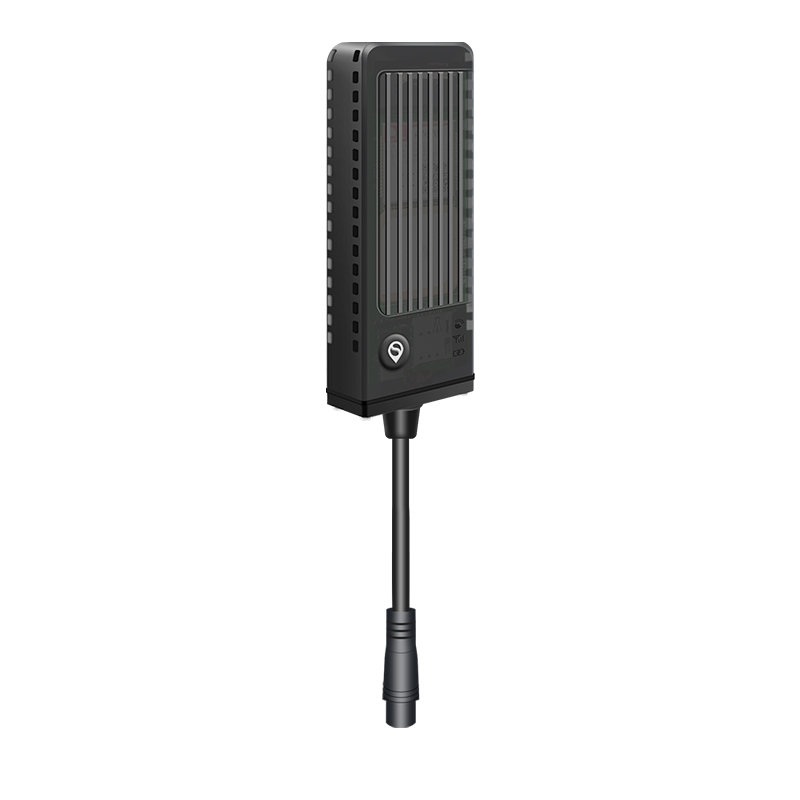

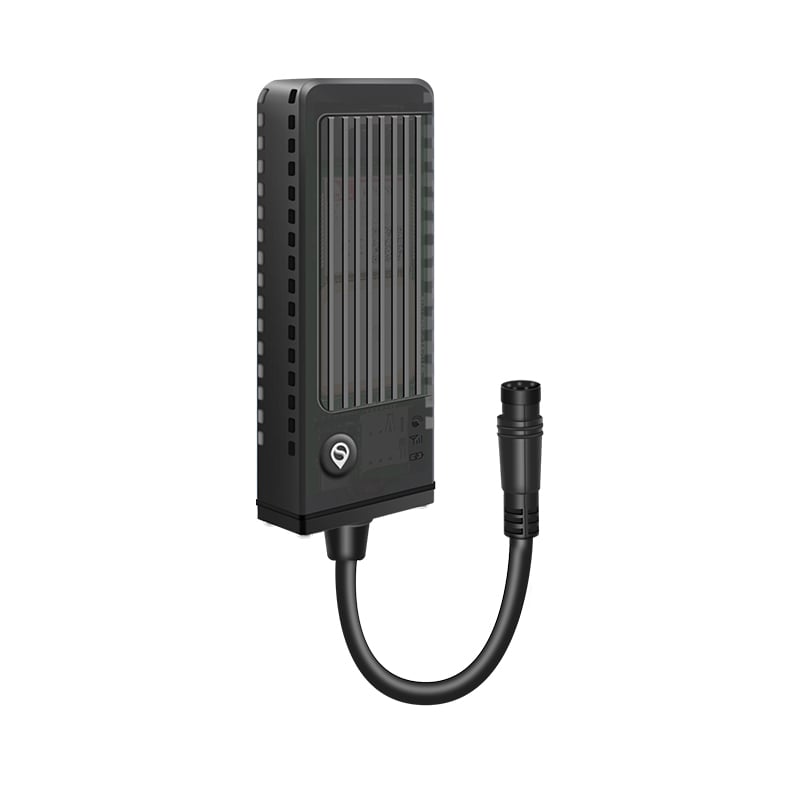

This is a multi-functional 4G vehicle tracker that uses GPS/BDS/GNSS multi-positioning technology, supports remote door opening and closing and door status detection, and can be used for car finance, truck management and logistics transportation.
Useful insight into the status of a fleet vehicle; be alerted if a door is unexpectedly opened.
Lock / Unlock the Car Door can be remotely controlled through the platform(WhatsGPS).
*Harsh acceleration
*Harsh braking
*Harsh cornering
*Collision
Possibly prevent vehicle accidents.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Quickly and easily upgrading firmware remotely.
Constantly detect the ACC/ignition status of the vehicle.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -160dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <32s |
| Antenna Dimensions | 25mmx25mmx4mm |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
GL-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm; |
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
60mA
|
|
Standby Current
|
5mA
|
|
Battery
|
300mAh
|
|
Memory Capacity
|
16MB + 16MB
|
|
LED Indication
|
GPS(Blue), GSM(Green), Power(Red)
|
|
Card Slot
|
Nano SIM
|
Physical
| Dimensions |
98.5 × 38 × 17mm
|
|
Weight
|
71g
|
Environment
| Operating Temperature | -20C~+75℃ |
| Operating humidity | 10%~85%RH |
| Protection Rating | IP67 |
