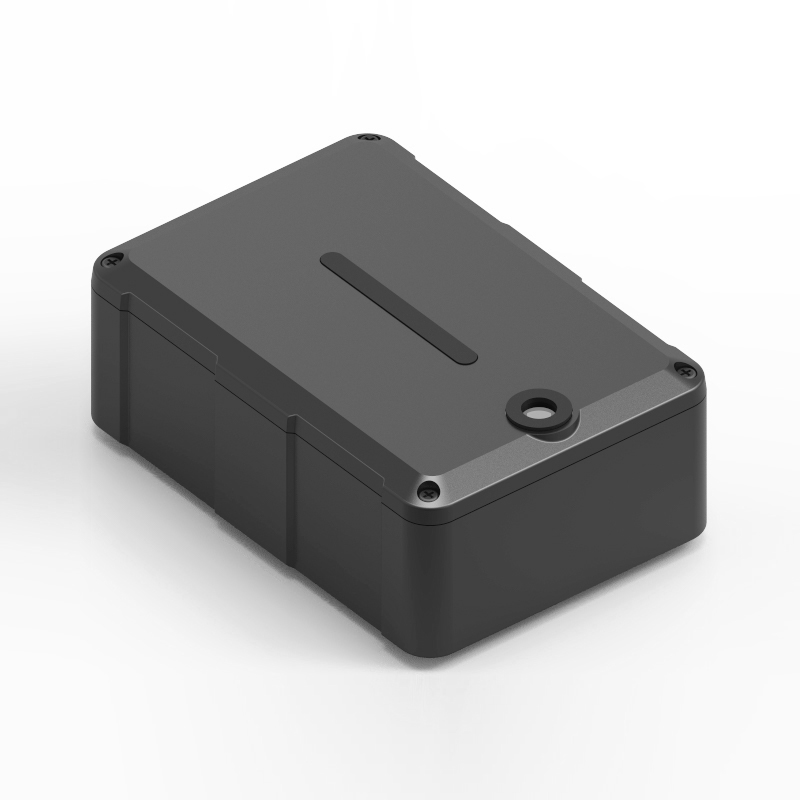

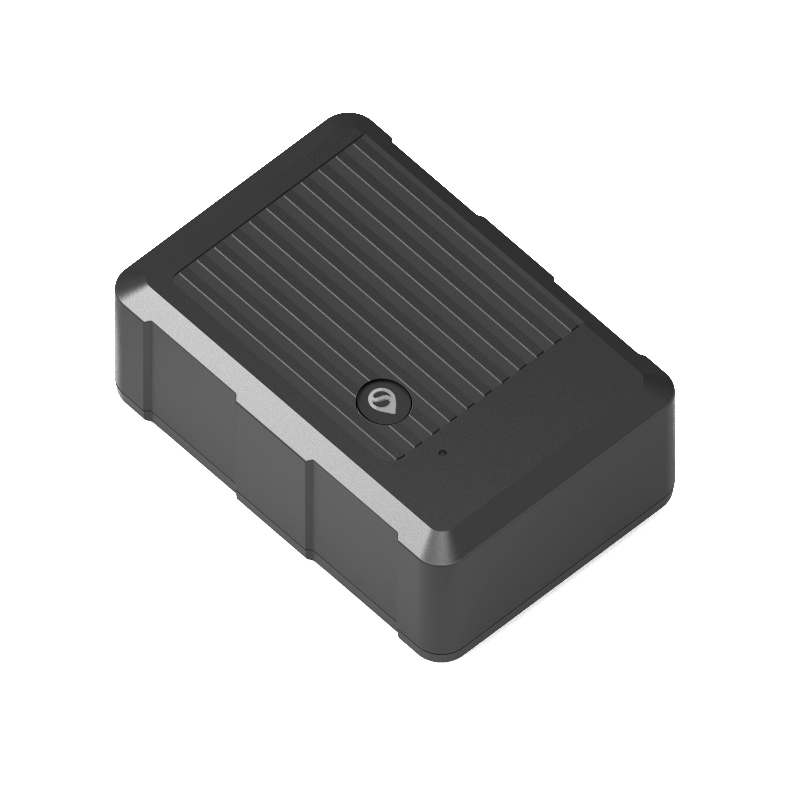

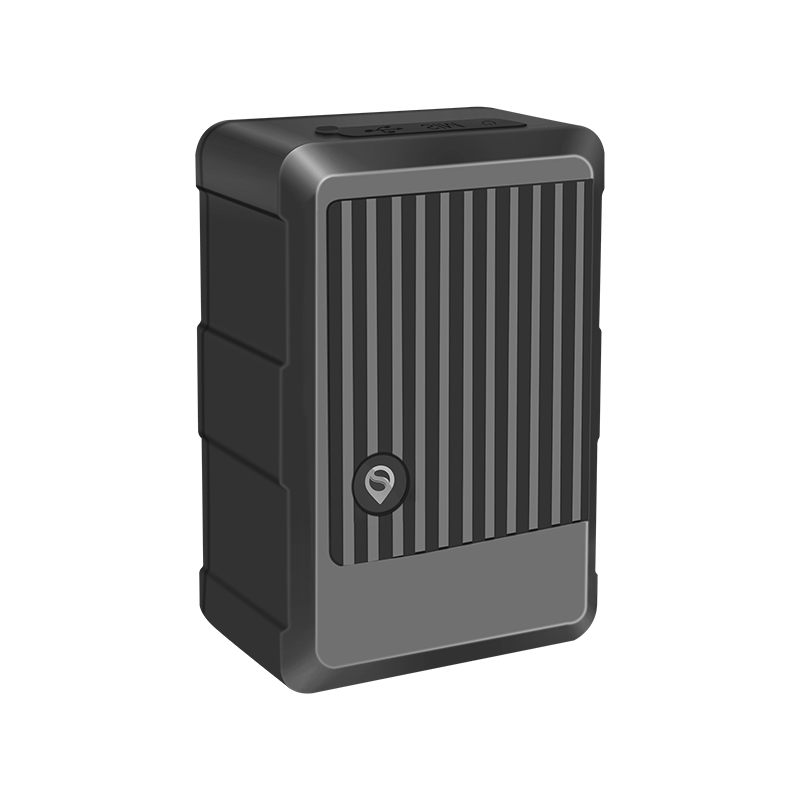

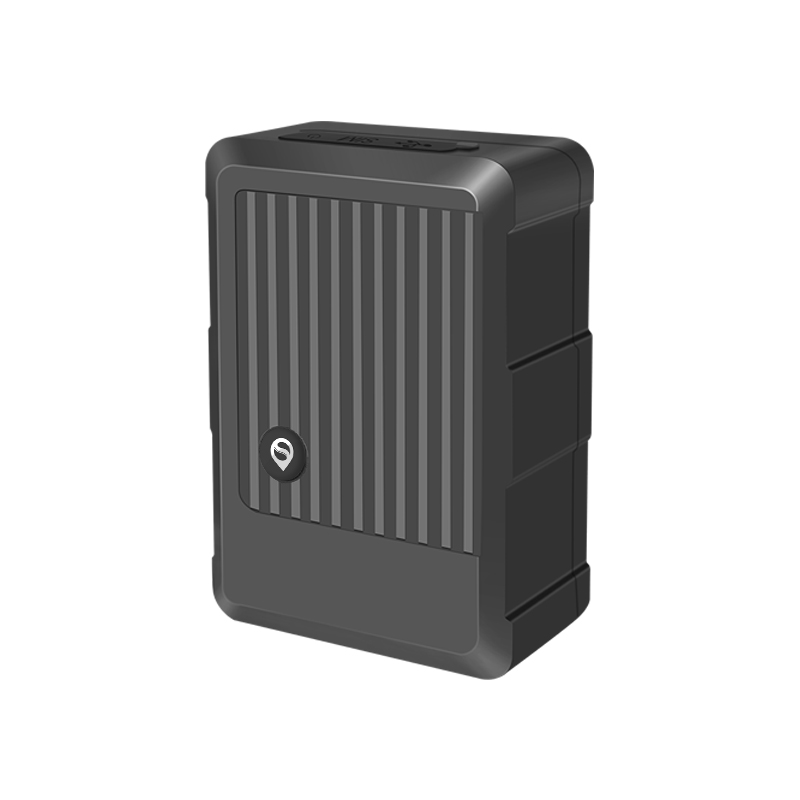

W18L is a 4G multi-functional asset rechargeable locator that uses GPS/BDS/LBS multi-positioning technology, equipped with a 10000mah rechargeable large battery and IP67 waterproof and dustproof rating, suitable for industries such as transportation, logistics distribution and asset management.
SOS alarm via pressing function button.
Get alarms when light changes suddenly.
Trigger an alarm when the device battery is about to run out of charge.
Quickly and easily upgrading firmware remotely.
Configurable working modes according to your actual demands.
Mode 1 : Real Time Tracking Mode
Mode 2: Smart Tracking Mode
Mode 3: Power Saving Mode
Mode 4: Alarm Tracking Mode
10000mAh rechargeable battery and IP67 waterproof rating make the device suitable for multiple scenarios.
GNSS
| Positioning Mode | GPS, BDS, LBS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -160dBm |
| Positioning Time |
Avg.hot start ≤1s Avg.cold start ≤32s |
| Antenna Dimensions |
25mmx25mmx4mm |
Communication
|
Communication Standard
|
LTE Cat1 |
|
Communication Frequency
|
LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz |
|
Max Output Power
|
23dBm±2dBm |
Operating
|
Operating Current
|
52mA
|
|
Standby Current
|
5mA
|
|
Battery
|
10000mAh（Rechargeable） |
|
Memory Capacity
|
16MB+8MB |
|
LED Indication
|
GSM (Orange)，GPS (Blue)，Power (Red) |
|
Card Slot
|
Nano SIM |
Physical
| Dimensions |
92×63×36 mm |
|
Weight
|
290g
|
Environment
|
Operating Temperature
|
-20℃ - 75℃ |
|
Operating humidity
|
10%-85% RH |
|
Protection Rating
|
IP67 |
