S08L is a wireless tracker designed for ultra-long operation and easy installation. The 4,200mAh battery allows it to operate for more than 3 years in default mode, that is, one position fixes a day. The compact size and the strong magnet enable it to be installed hidden in vehicles, equipment, and other valuables securely.
Communication via 4G LTE networks with 2G GSM fallback.
Quickly and easily upgrading firmware remotely.
Get alarms when light changes suddenly.
Receive an alarm when the built-in battery is low.
The 4,200mAh battery allows it to operate for more than 3 years in default mode(one position fixes a day) .
Configurable working modes according to your actual demands.
*Real Time Tracking Mode
*Regular Tracking Mode
*Alarm Tracking Mode
GNSS
| Positioning Mode | GPS，BDS，GNSS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -160dBm |
| Positioning Time |
Avg.hot start ≤1s Avg.cold start ≤32s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
3.7V
|
|
Operating Current
|
2mA
|
|
Standby Current
|
0.0032mA
|
|
Battery
|
4200mAh |
|
Memory Capacity
|
16MB+16MB |
|
LED Indication
|
GSM(Yellow)，GPS(Blue) |
|
Card Slot
|
Micro-SIM
|
Physical

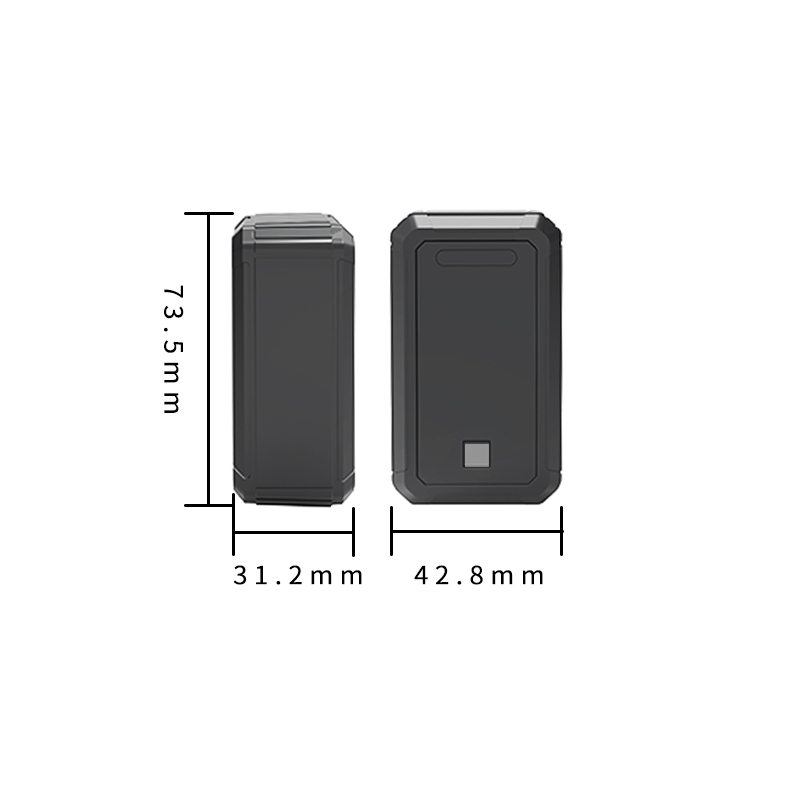

| Dimensions |
73×42×31 mm |
|
Weight
|
131g
|
Environment
|
Operating Temperature
|
-20℃~+75℃ |
|
Operating humidity
|
10%-85%RH |
|
Protection Rating
|
IP65
|
