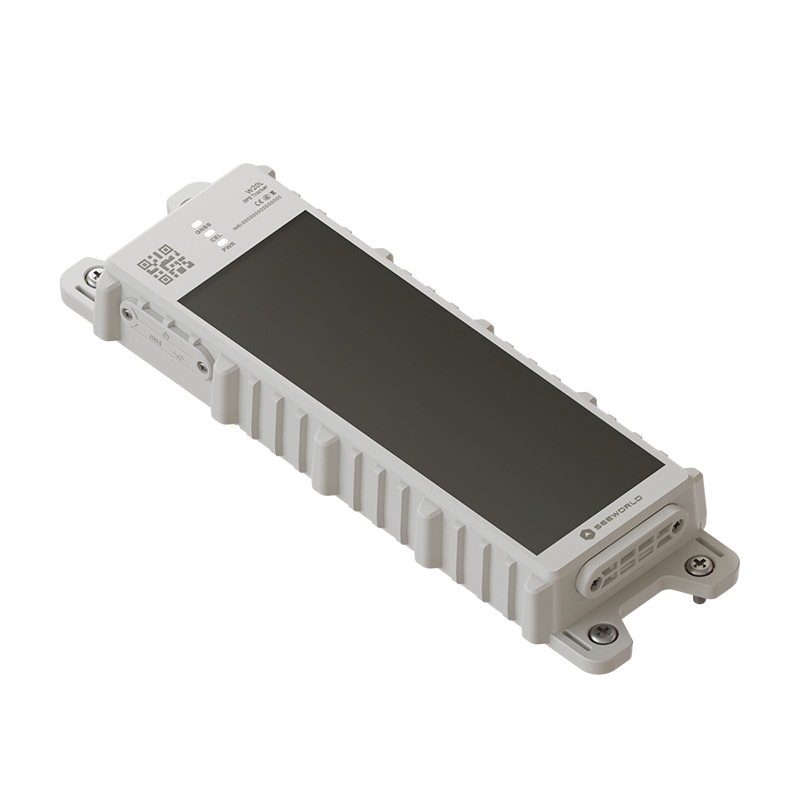

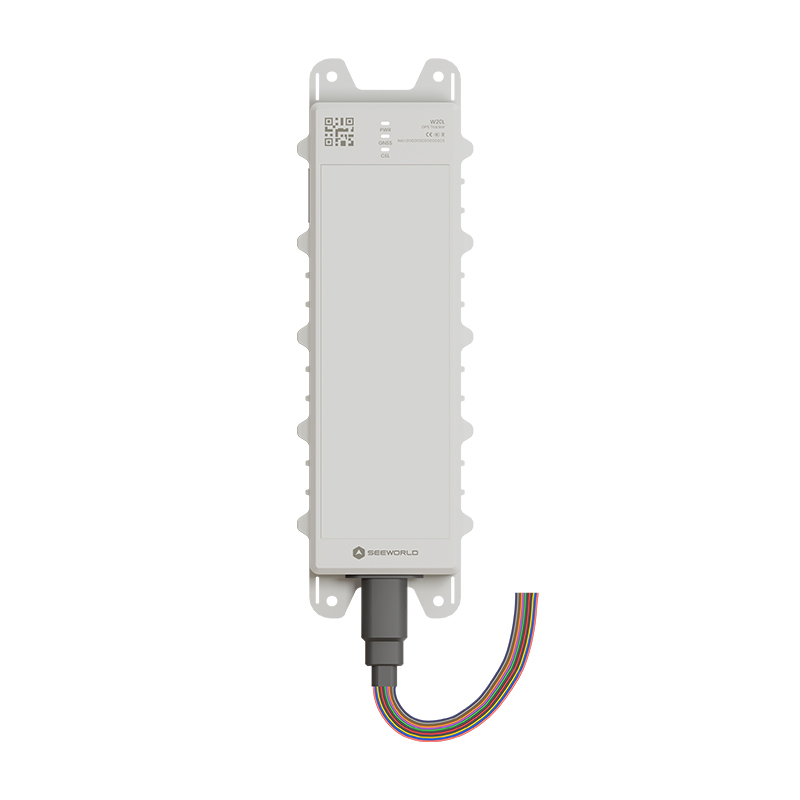

W20L is a solar-powered asset locator that has both cellular and satellite communications, and can maintain network connectivity in remote areas with no signal for shipping, land transport containers, and fishing boats. The product can also be connected to an external wired interface for use in non-powered trailer scenarios.
High-efficiency solar power supply, 12000mah large-capacity battery, no need for charging troubles.
IP67 waterproof, so that the product can be used in harsh outdoor scenes.
Can be connected to external Bluetooth temperature and humidity, Bluetooth beacon, door magnetic sensor.
Can monitor asset dumping and rollover, and timely alarm for safety issues.
Hall anti-tampering alarm allows your device to stably alarm in any installation method to protect the safety of your assets.
The product has a water fall detection alarm function, which makes it easier to find your lost assets.
GNSS
| Positioning Mode | GPS, BDS, LBS, WIFI (optional) |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -163dBm |
| Capturing Sensitivity | -158dBm |
| Positioning Time |
Avg.hot start ≤1s Avg.cold start ≤28s |
Communication
|
Communication Standard
|
LTE Cat1/Satellite communication |
|
Communication Frequency
|
GL-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz NA-Version: Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/ B8/B28/B66 GSM 850/900/1800/1900 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz |
|
Max Output Power
|
23dBm±2dB |
Operating
| Operating Voltage | 4.2V |
|
Operating Current
|
<60mA |
|
Standby Current
|
<2uA |
|
Battery
|
12000mAh |
|
Memory Capacity
|
8MB+8MB |
|
LED Indication
|
GSM（Blue），GPS(Green)，Power（Red） |
|
Card Slot
|
Nano SIM卡/e-SIM |
Physical
| Dimensions |
256×82×32mm |
|
Weight
|
600g |
Environment
|
Operating Temperature
|
-20℃~+70℃ |
|
Operating humidity
|
10%~85%RH |
|
Protection Rating
|
IP67 |
