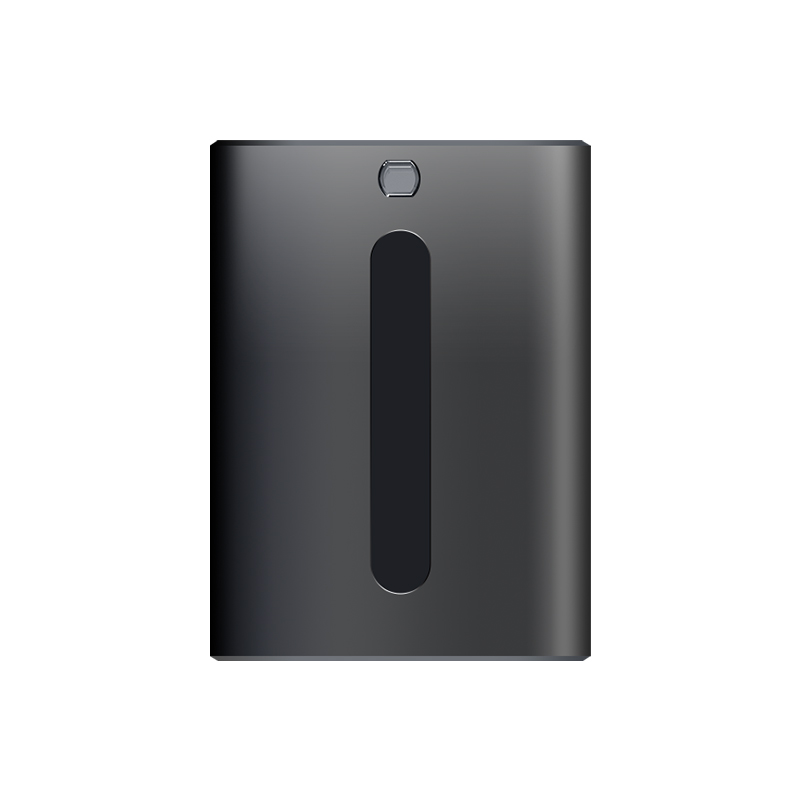

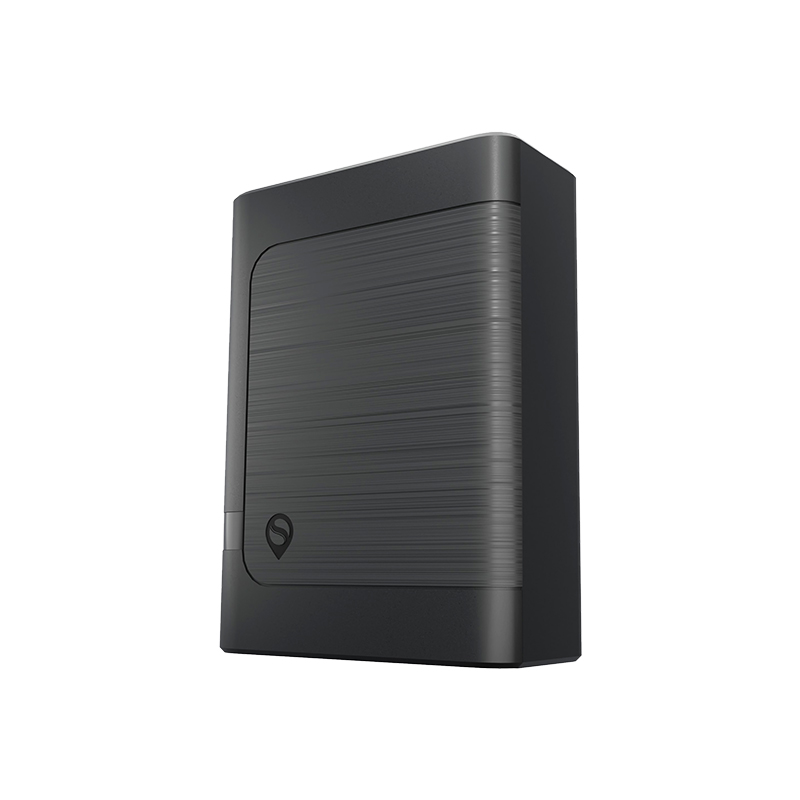

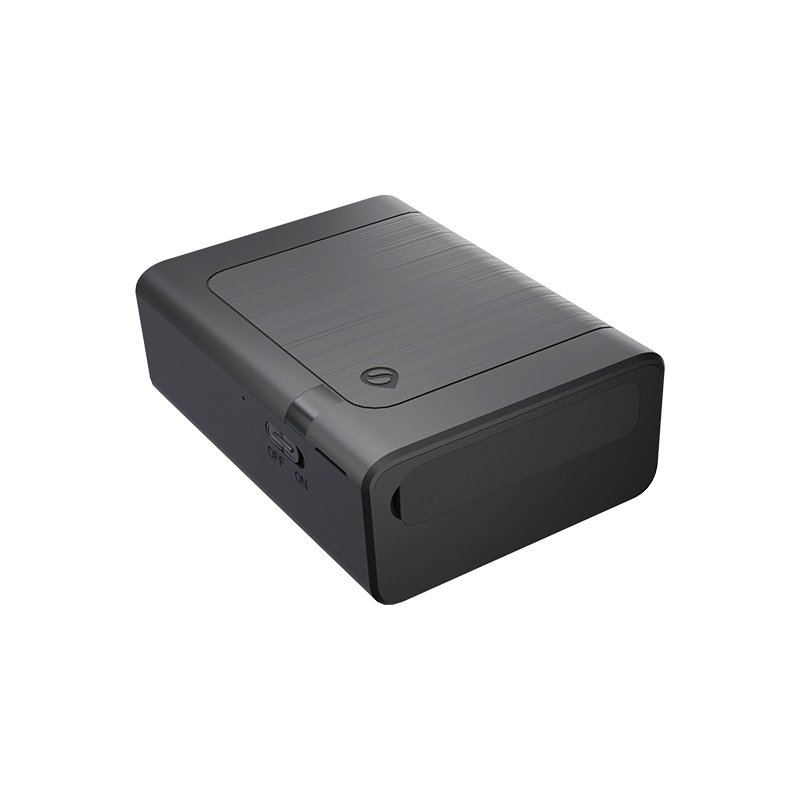

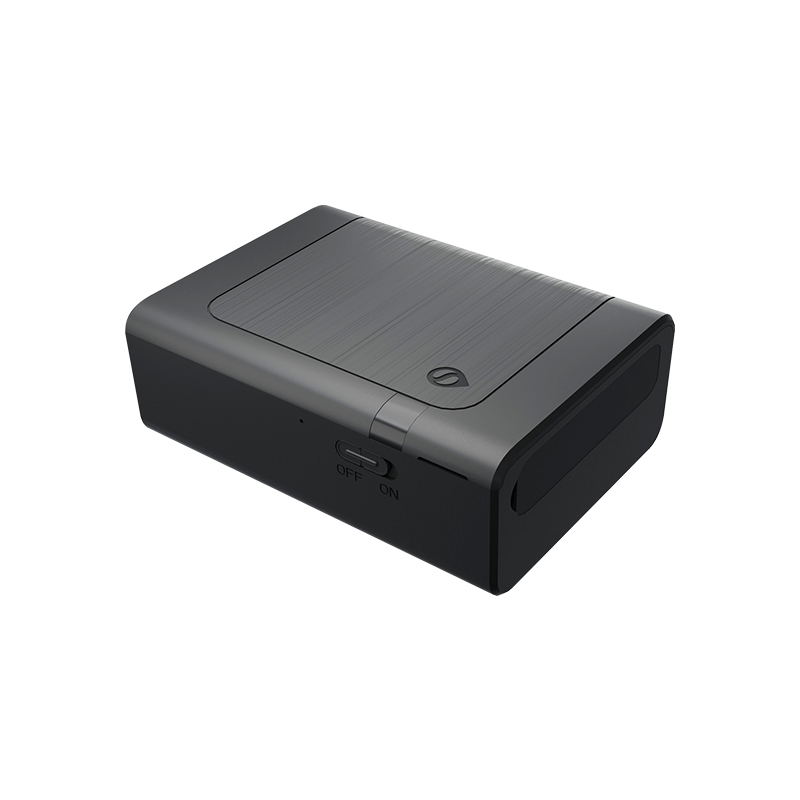

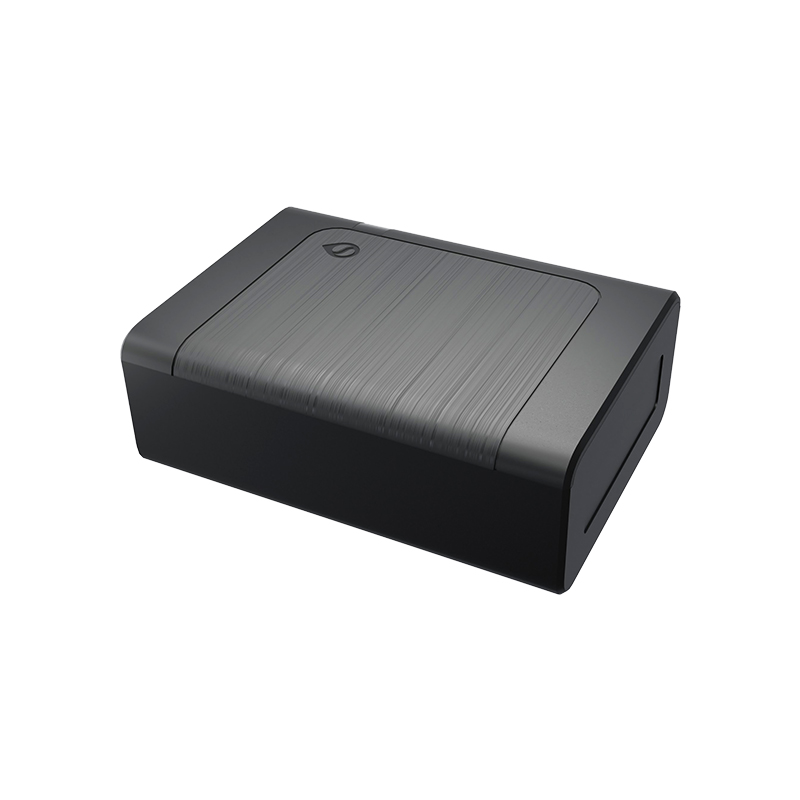

W15 is a global 2G wireless GPS tracker, supporting GPS/BDS tracking technology, strong magnetic adsorption without complicated installation. It's suitable for car loan, transportation and fleet management.
Get alarms when light changes suddenly.
Tightly and effortlessly fastens to most metal surfaces.
With built-in vibration sensor, an alarm will be sent immediately when the vehicle has abnormal vibration.
Trigger an alarm when the vehicle battery is about to run out of charge.
Configurable working modes according to your actual demands.
*Real Time Tracking Mode
*Regular Tracking Mode
*Alarm Tracking Mode
High-capacity battery is ideal for long standby applications, and is easily recharged for re-deployment.
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -165dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start ≤15s Avg.cold start ≤53s |
Communication
|
Communication Standard
|
GSM |
|
Communication Frequency
|
850/900/1800/1900 MHz |
|
Max Output Power
|
GSM:30±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
3.7V
|
|
Operating Current
|
57mA
|
|
Standby Current
|
5mA
|
|
Battery
|
7500mAh |
|
Memory Capacity
|
64Mb+4Kb |
|
LED Indication
|
GSM (Red), GPS (Orange), Power (Red-Green) |
|
Card Slot
|
Standard |
Physical
| Dimensions |
86×63×34 mm |
|
Weight
|
236g
|
Environment
|
Operating Temperature
|
-25℃~+75℃ |
|
Operating humidity
|
10%~85%RH |
|
Protection Rating
|
IP65 |
