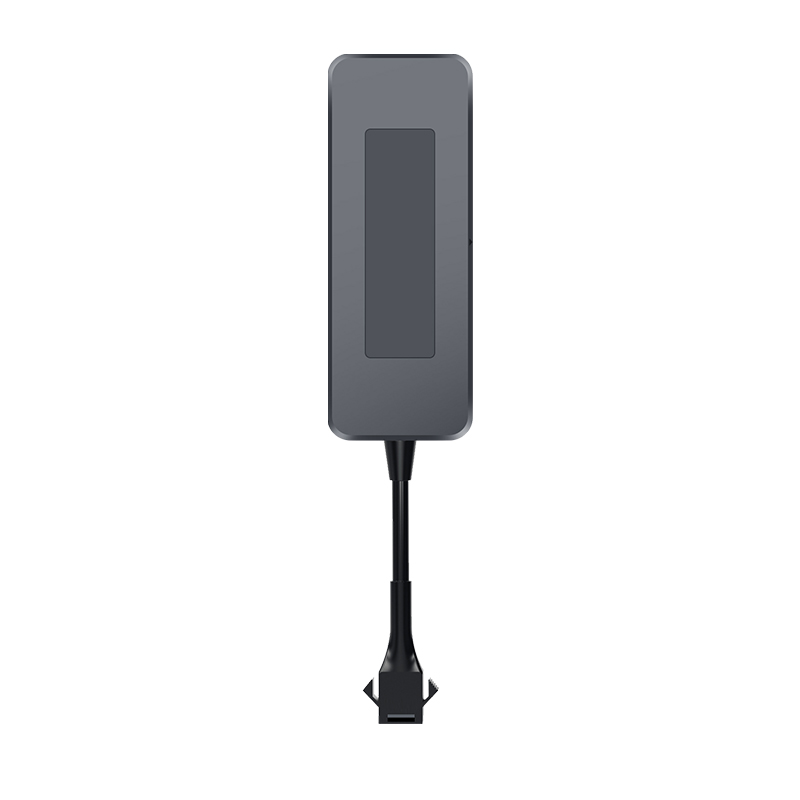

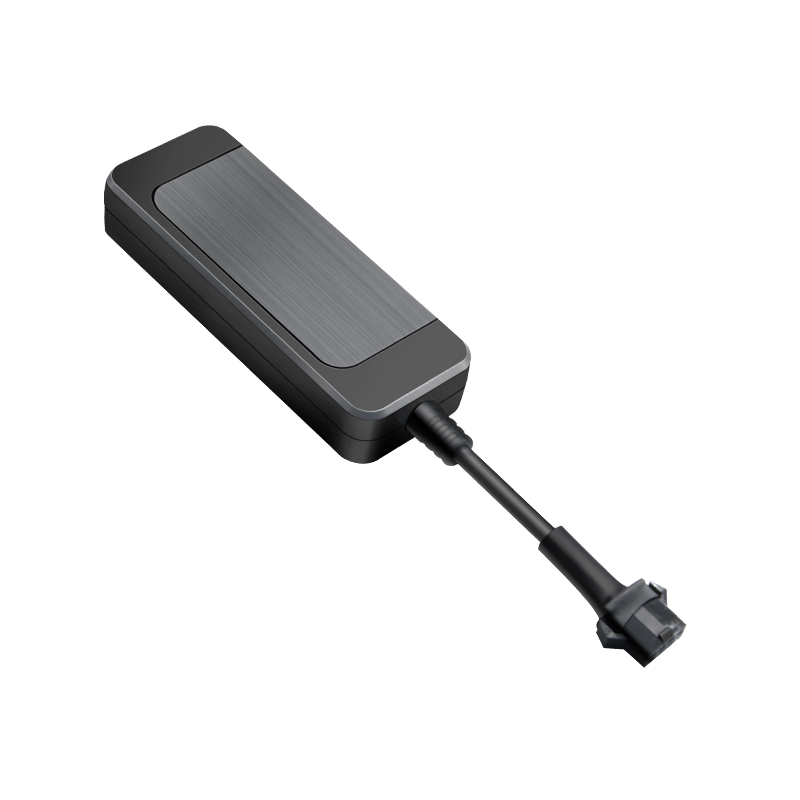

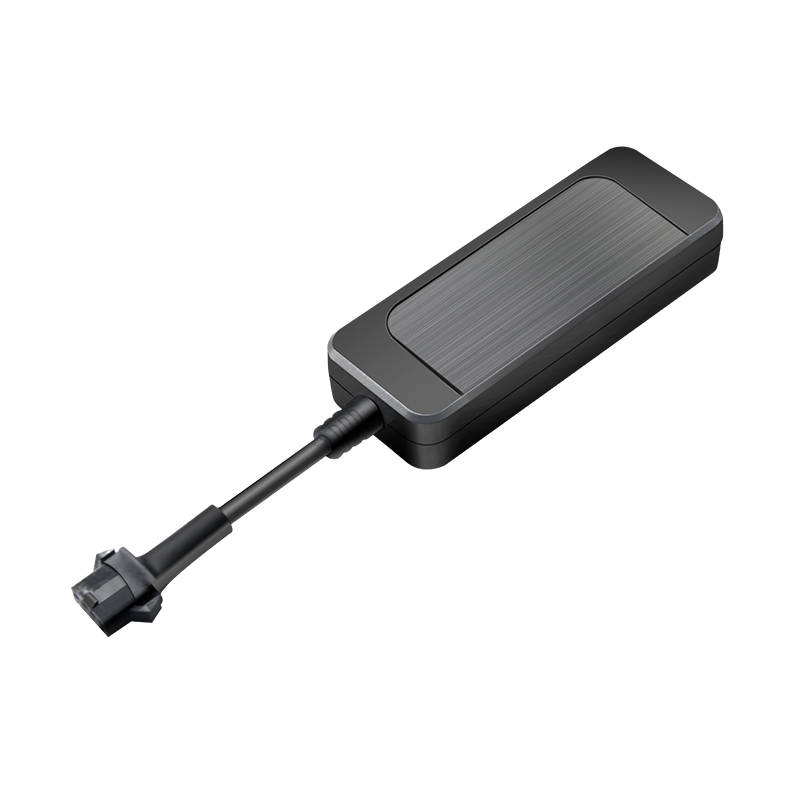

It is a universal 4G vehicle tracker that supports BDS/GPS/GNSS positioning, realizes microsecond positioning and low-latency return, 10+ alarm mechanism to protect vehicles, and can be widely used in car loans, logistics, and electric vehicle and other industries.
Constantly detect the ACC/ignition status of the vehicle.
Communication via 4G LTE networks with 2G GSM fallback.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
Quickly and easily upgrading firmware remotely.
*Harsh acceleration
*Harsh braking
*Harsh cornering
*Collision
Possibly prevent vehicle accidents.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <32s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
GL-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
50mA
|
|
Standby Current
|
12mA
|
|
Battery
|
100mAh
|
|
Memory Capacity
|
8MB
|
|
LED Indication
|
GPS(Blue), GSM(Green), Power(Red)
|
|
Card Slot
|
Nano SIM
|
Physical
| Dimensions |
80×32×15mm
|
|
Weight
|
36g
|
Environment
|
Operating Temperature
|
-20℃~+75℃
|
|
Operating humidity
|
10%～85%RH
|
