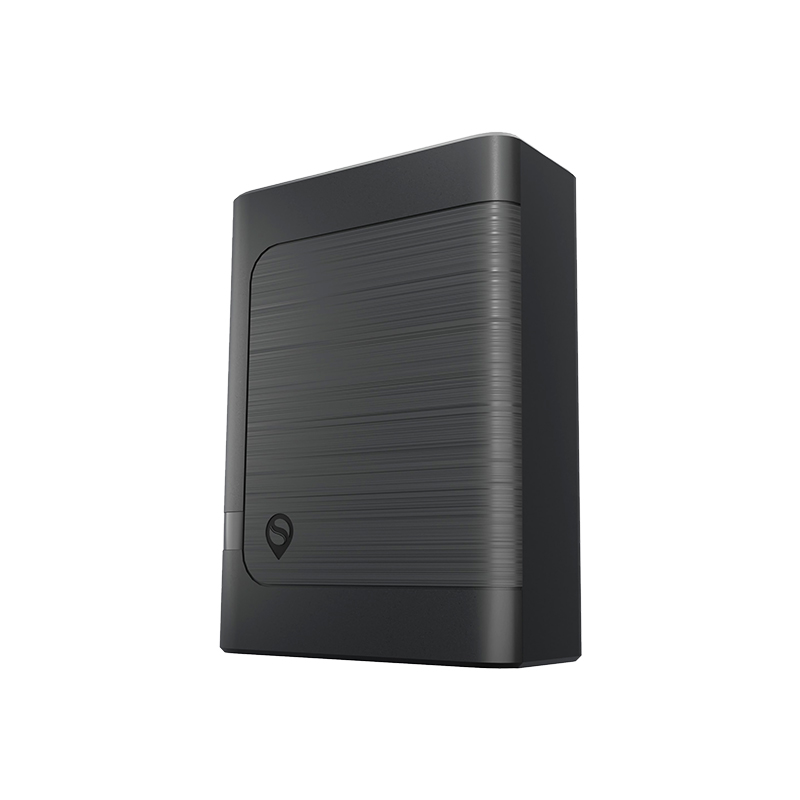

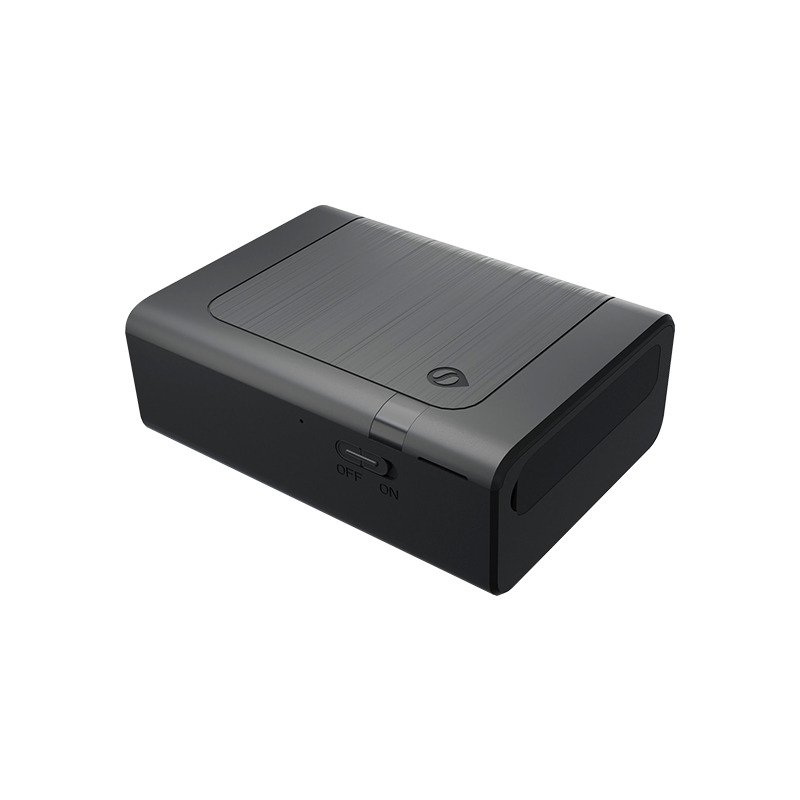

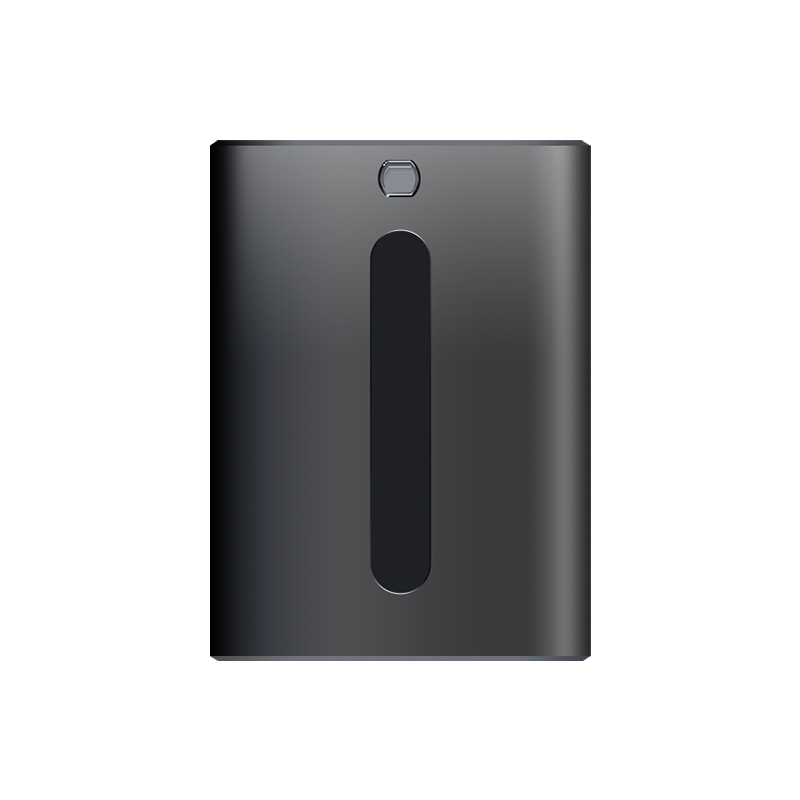

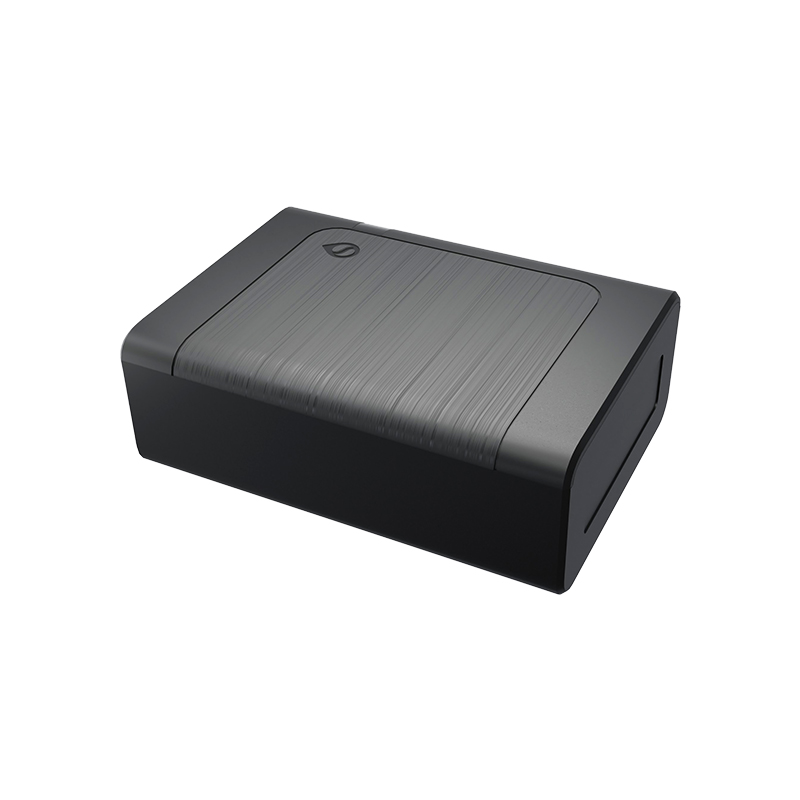

W15L is a global 4G wireless GPS tracker, supporting BDS/GPS/GNSS triple tracking technology, strong magnetic adsorption without complicated installation. It's suitable for car loan, transportation and fleet management.
Get alarms when light changes suddenly.
Quickly and easily upgrading firmware remotely.
With built-in vibration sensor, an alarm will be sent immediately when the vehicle has abnormal vibration.
Rugged design ensures continued optimal performance, even in the toughest conditions.
Configurable working modes according to your actual demands.
Mode 1 : Real Time Tracking Mode
Mode 2: Smart Tracking Mode
Mode 3: Power Saving Mode
High-capacity battery is ideal for long standby applications, and is easily recharged for re-deployment.
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -165dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time |
Avg.hot start ≤15s Avg.cold start ≤53s |
Communication
|
Communication Standard
|
GSM |
|
Communication Frequency
|
850/900/1800/1900 MHz |
|
Max Output Power
|
GSM:30±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
3.7V
|
|
Operating Current
|
57mA
|
|
Standby Current
|
5mA
|
|
Battery
|
7500mAh |
|
Memory Capacity
|
64Mb+4Kb |
|
LED Indication
|
GSM (Red), GPS (Orange), Power (Red-Green) |
|
Card Slot
|
Standard |
Physical
| Dimensions |
86×63×34 mm |
|
Weight
|
236g
|
Environment
|
Operating Temperature
|
-25℃~+75℃ |
|
Operating humidity
|
10%~85%RH |
|
Protection Rating
|
IP65 |
