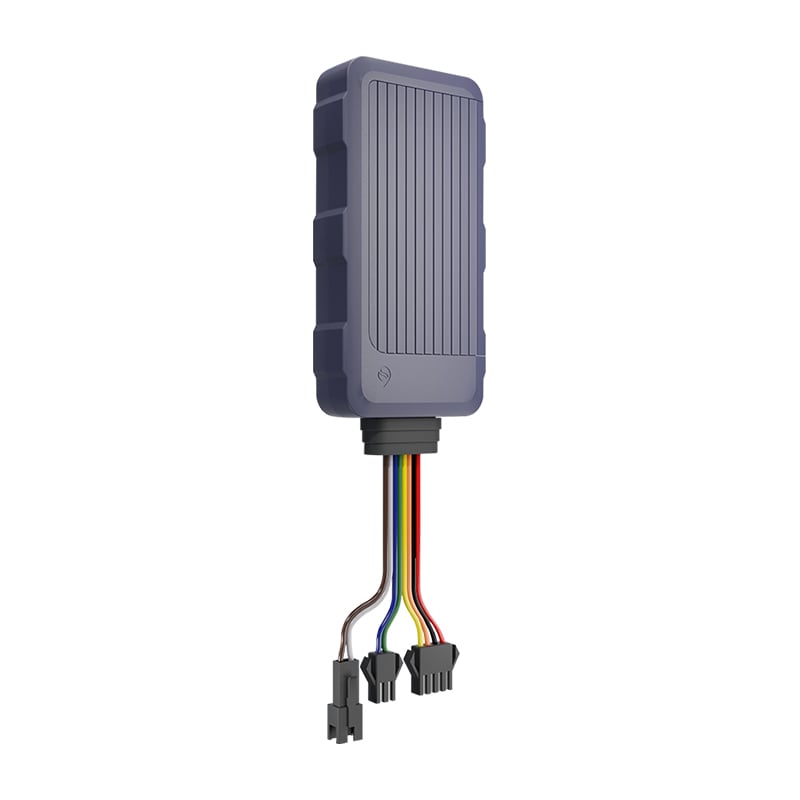

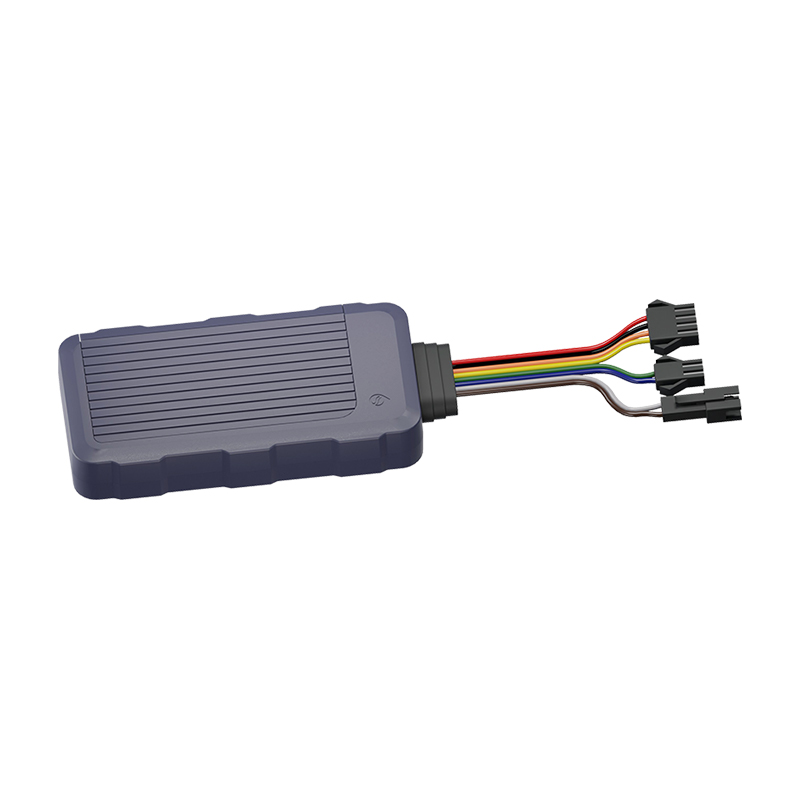

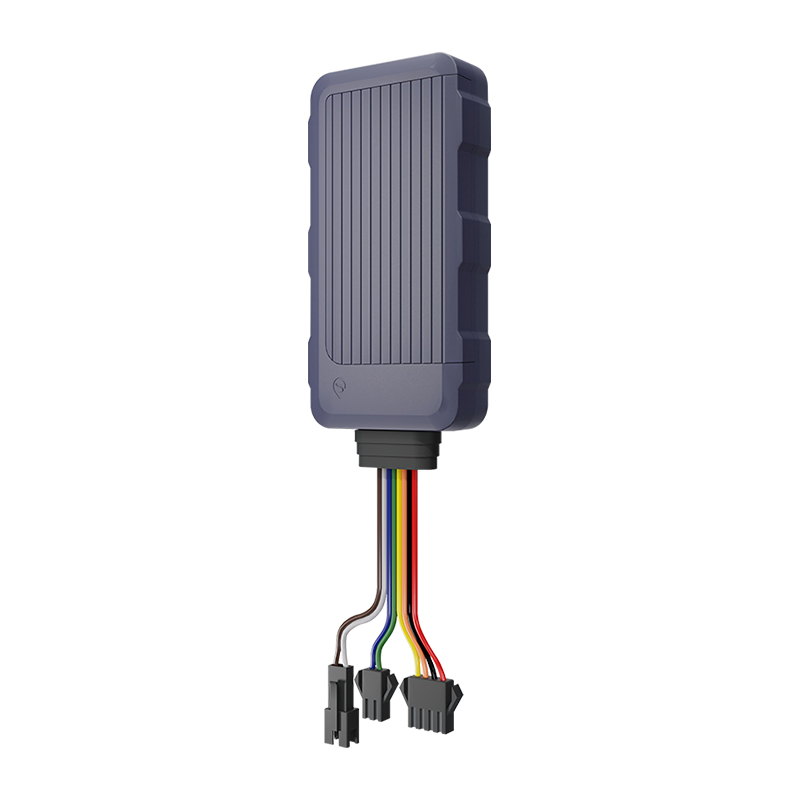

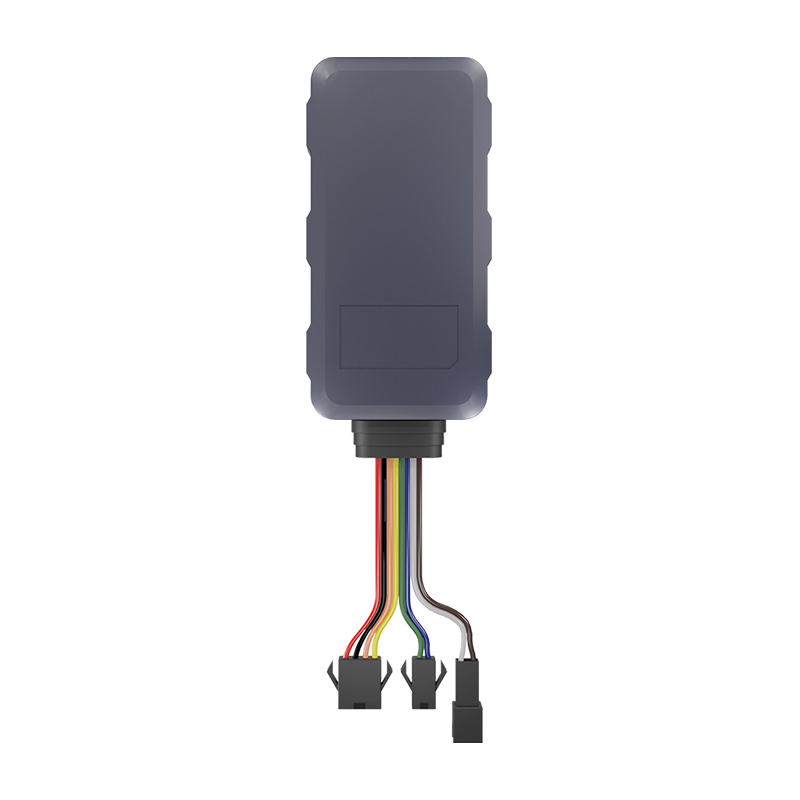

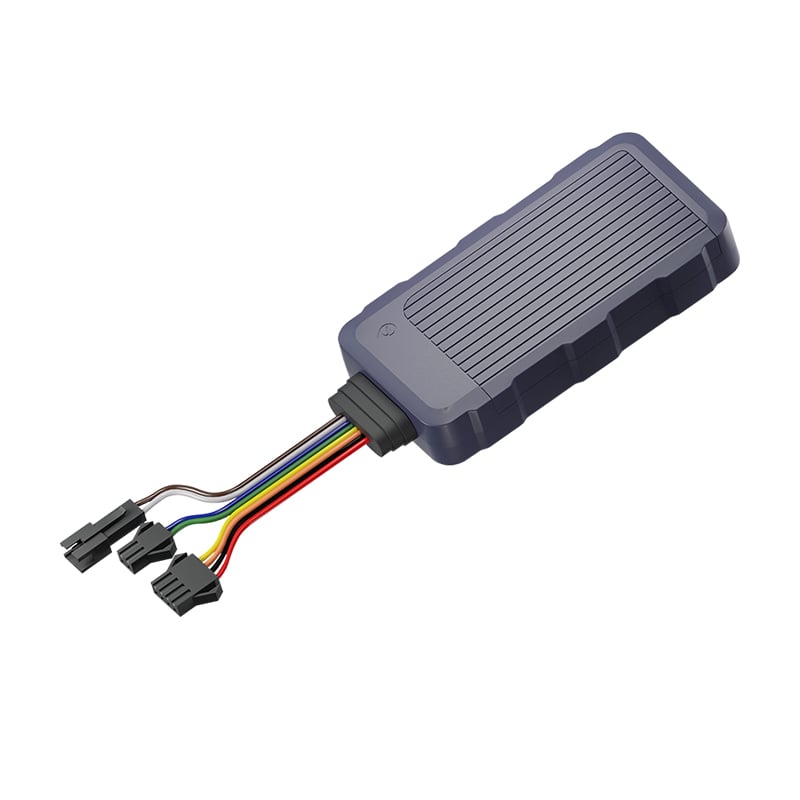

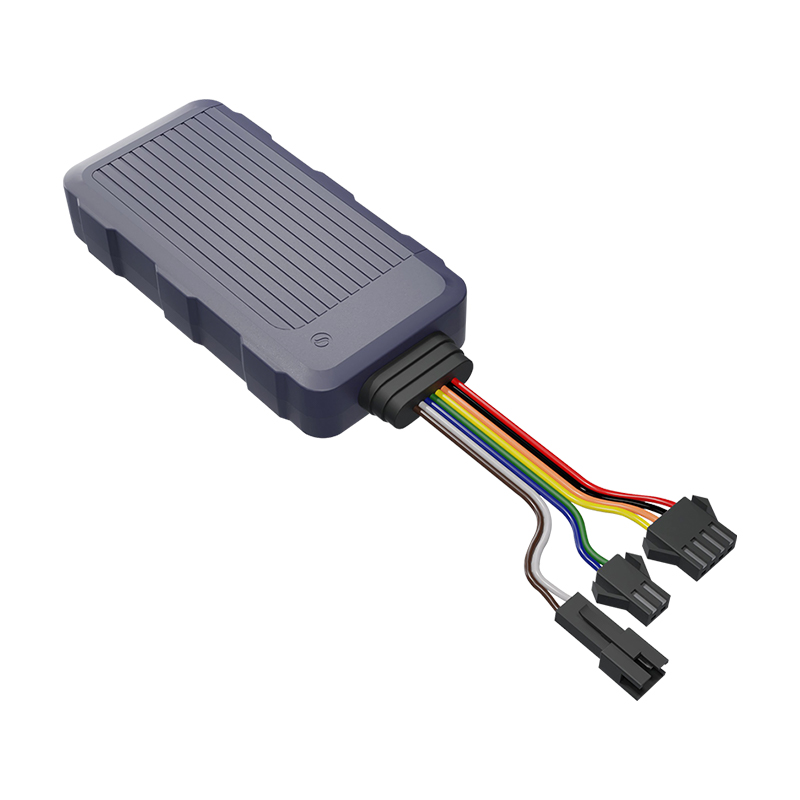

The G20L is an 8-wire Tracker, using GPS/BDS/GLONASS/Galileo multi-positioning technology,so that the tracking signal can easily cover most of the land areas around the world. With more than a dozen functions, such as real-time tracking, speed, fence, reports, etc., this tracker is able to reduce the incidence of vehicle thefts effectively, and it is suitable for Fleet Management, Car Rental, and Private Car Management.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Quickly and easily upgrading firmware remotely.
Constantly detect the ACC/ignition status of the vehicle.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out, etc.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -160dBm |
| Capturing Sensitivity | -158dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <28s |
| Antenna Dimensions | 25mmx25mmx4mm |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
GL-Version: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B34/B38/B39/B40/B41 GSM:850/900/1800/1900 MHz |
|
Max Output Power
|
33土2dBm
|
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
55mA
|
|
Standby Current
|
8mA
|
|
Battery
|
180mAh
|
|
Memory Capacity
|
64MB
|
|
LED Indication
|
GPS(Blue), GSM(Yellow), Power(Red)
|
|
Card Slot
|
Nano SIM
|
Physical
| Dimensions |
86.5 × 44.5 × 16mm
|
|
Weight
|
59g
|
Environment
|
Operating Temperature
|
-20℃~+60℃ |
