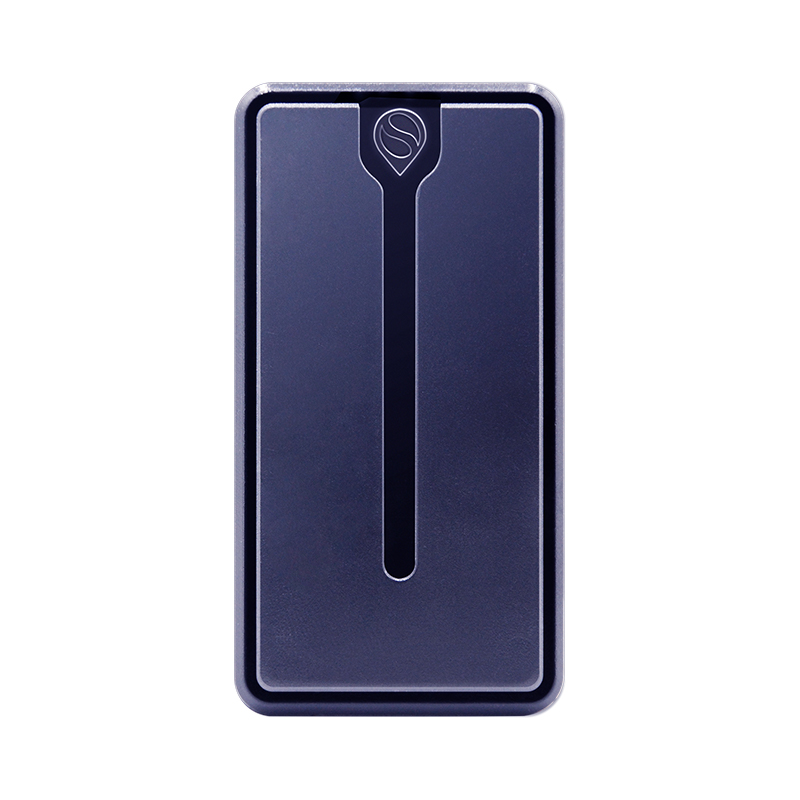

S11L is a 4G Wireless Mini Asset GPS Tracker designed for Vehicle and Asset Management, using GPS/BDS dual positioning technology, equipped with 1100 mAh rechargeable battery and strong magnet, lightweight, portable and easy to install, very suitable for widespread deployment.
Tightly and effortlessly fastens to most metal surfaces.
An alarm will be sent immediately when the vehicle has abnormal vibration.
Receive an alarm when the built-in battery is low.
Quickly and easily upgrading firmware remotely.
1100mAh rechargeable battery is easily recharged for re-deployment.
Configurable working modes according to your actual demands.
*Real Time Tracking Mode
*Regular Tracking Mode
*Alarm Tracking Mode
GNSS
| Positioning Mode | GPS, BDS |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -160dBm |
| Positioning Time |
Avg.hot start ≤13s Avg.cold start ≤45s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz LA-Version: LTE-FDD B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm |
Operating
|
Operating Voltage
|
3.7V
|
|
Operating Current
|
60mA
|
|
Standby Current
|
4.2mA
|
|
Battery
|
1100mAh |
|
Memory Capacity
|
4MB |
|
LED Indication
|
Power (Red-Green), GPS (Green), GSM (Red) |
|
Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
60 × 31.5 × 20mm |
|
Weight
|
42g
|
Environment
|
Operating Temperature
|
-20℃~+70℃ |
|
Operating humidity
|
10%~85%RH |
