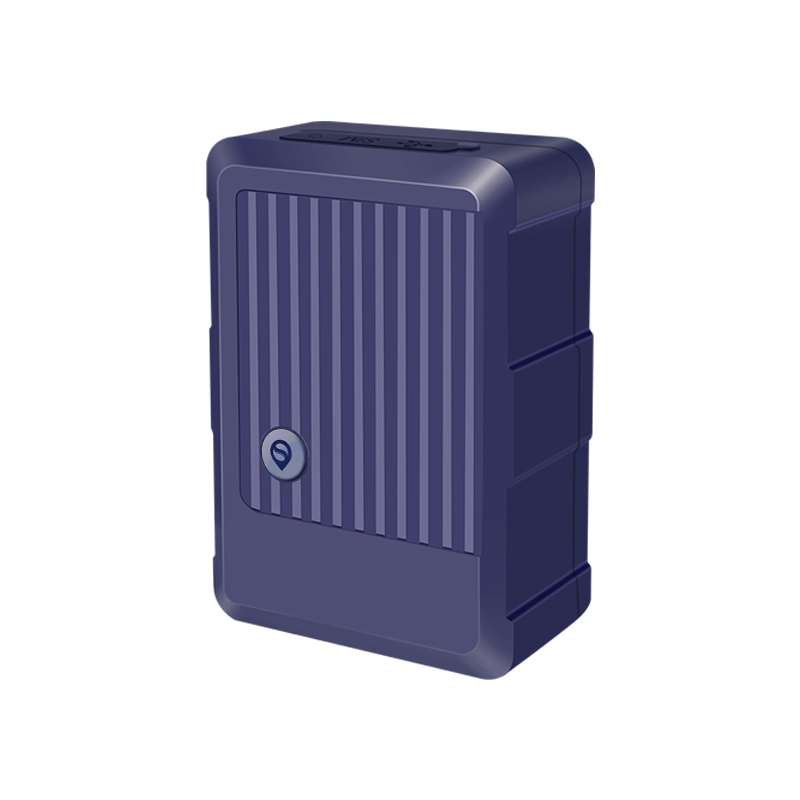

W18L is a 4G Multi-functional Asset Locator, using GPS / BDS / WIFI positioning technology, equipped with 10000mAh rechargeable battery and IP67 waterproof rating, built-in Temperature & Humidity, and Light sensor, especially suitable for using in Cold Chain Logistics, Logistics & Delivery, and Asset Management industries.
Can connect to the device via Bluetooth to set parameters such as IP, port or alarm.
Optional peripherals to monitor temperature and humidity to gain visibility into your operations and help save money.
Trigger an alarm when the device battery is about to run out of charge.
Get alarms when light changes suddenly.
Configurable working modes according to your actual demands.
Mode 1 : Real Time Tracking Mode
Mode 2: Smart Tracking Mode
Mode 3: Power Saving Mode
Mode 4: Alarm Tracking Mode
10000mAh rechargeable battery and IP67 waterproof rating make the device suitable for multiple scenarios.
GNSS
| Positioning Mode | GPS, BDS, WIFI |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -160dBm |
| Positioning Time |
Avg.hot start ≤1s Avg.cold start ≤32s |
| Antenna Dimensions |
25mmx25mmx4mm |
Communication
|
Communication Standard
|
LTE Cat1 |
|
Communication Frequency
|
GL-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900 MHz EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm; |
| Bluetooth Frequency |
BLE5.1 |
Operating
|
Operating Voltage
|
3.7V
|
|
Operating Current
|
73mA
|
|
Standby Current
|
0.17mA
|
|
Battery
|
10000mAh |
|
Memory Capacity
|
16MB+16MB |
|
LED Indication
|
GSM (Orange), GPS (Blue), Power (Red) |
|
Card Slot
|
Nano SIM |
Physical
| Dimensions |
92×63×36 mm |
|
Weight
|
290g
|
Environment
|
Operating Temperature
|
-20℃ - 75℃ |
|
Operating humidity
|
10%-85% RH |
|
Protection Rating
|
IP67 |
