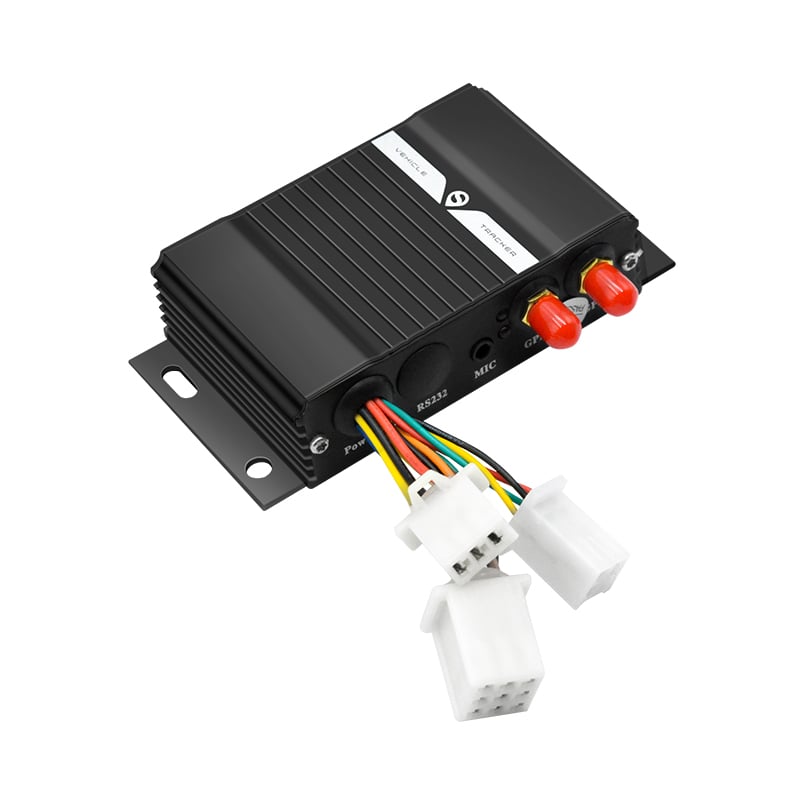

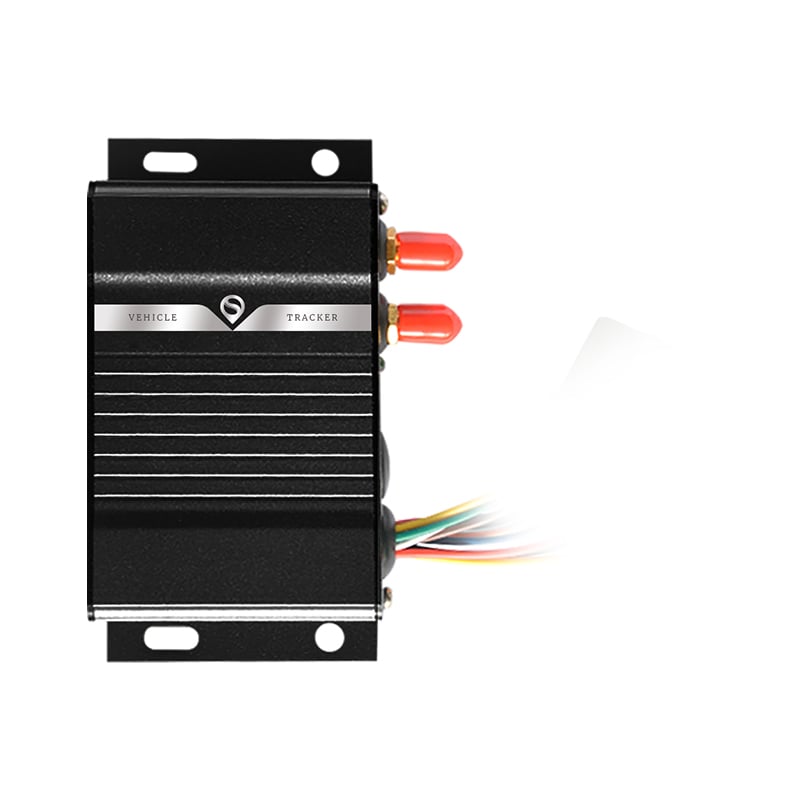

S208L is a 4G Cat.1/Cat.4 vehicle tracker that supports GPS/BDS/GLONASS positioning technology. It integrates real-time positioning, remote recording, remote flame-out, fuel report, multiple abnormal alarms and other functions in one. It's suitable for truck/fleet management, cold chain transportation and so on.
Keep fresh transportation of the cold chain.
Quickly and easily upgrading firmware remotely.
Quickly get notified when fuel level is harshly changing.
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
Multiple expansion interface, support for connecting car cameras.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
GNSS
| Positioning Mode | GPS, BDS, GLONASS, Galileo |
| Positioning Band | LI, BI |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -167dBm |
| Capturing Sensitivity | -149dBm |
| Positioning Time |
Avg.hot start <1s Avg.cold start <15s |
Communication
|
Communication Standard
|
LTE Cat1
|
|
Communication Frequency
|
CN-Version: FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 GSM:900/1800 MHz EU-Version: FDD:B1/B3/B5/B8/B20 GSM:900/1800 MHz LA-Version: FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:850/900/1800/1900 MHz |
|
Max Output Power
|
FDD：23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm |
Operating
|
Operating Voltage
|
9-90V DC
|
|
Operating Current
|
50mA
|
|
Standby Current
|
3mA
|
|
Battery
|
500mAh
|
|
Memory Capacity
|
50kB
|
|
LED Indication
|
GSM(Red), GPS(Blue)
|
|
Card Slot
|
Micro-SIM
|
Physical
| Dimensions |
101 × 50 × 24mm
|
|
Weight
|
128g
|
Environment
|
Operating Temperature
|
-30℃~+75℃
|
|
Operating humidity
|
10%~80%R
|
