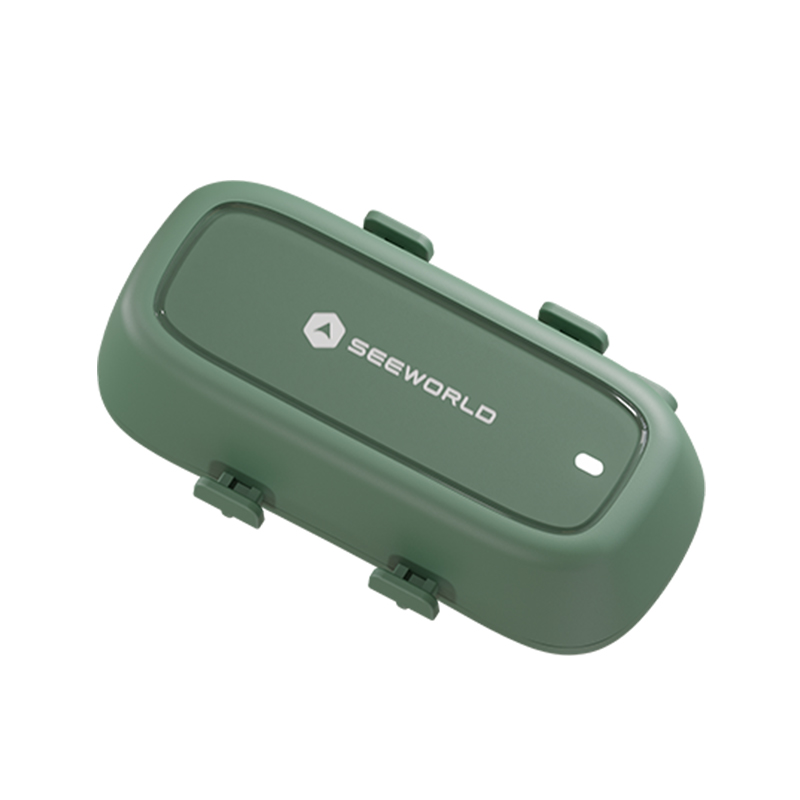

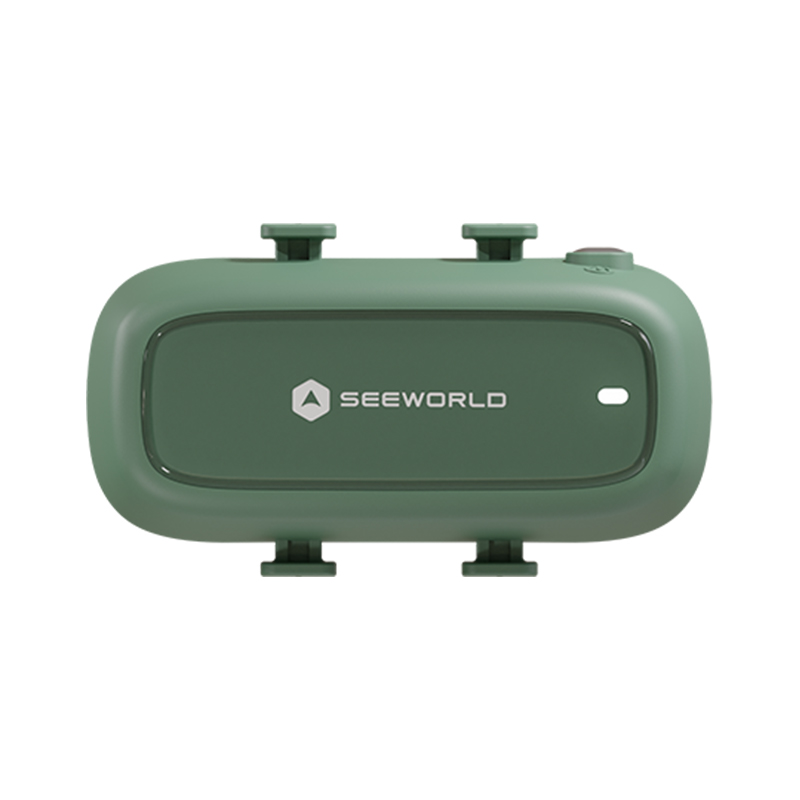

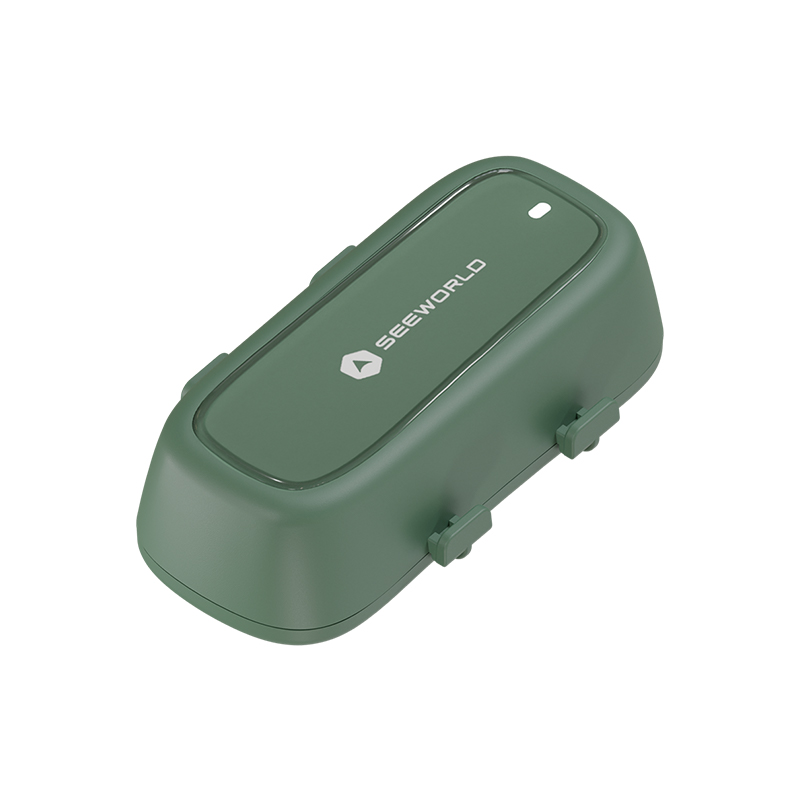

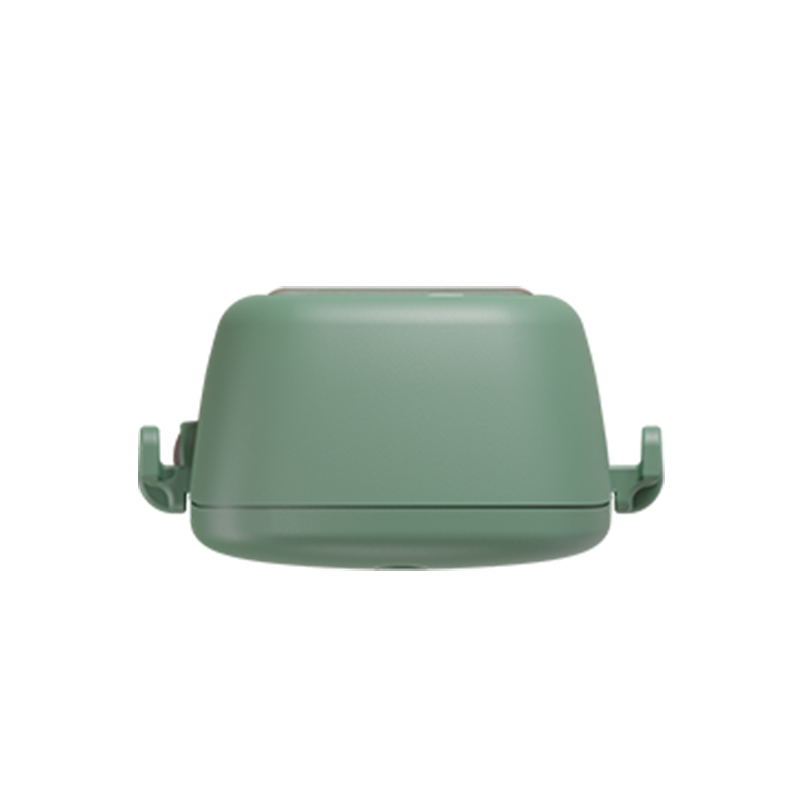

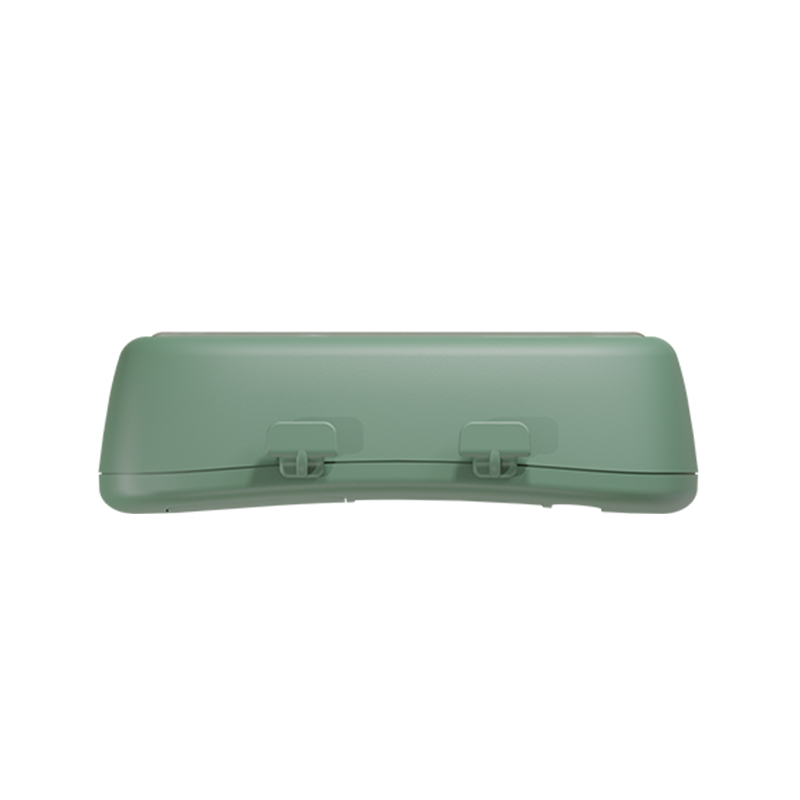

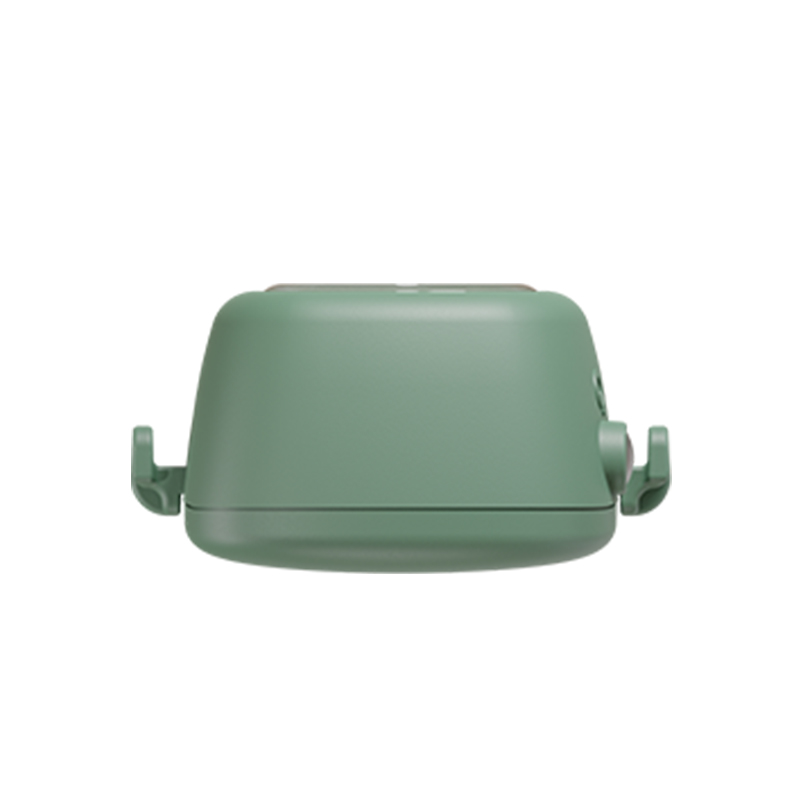

P5 is a 4G all-network pet positioning terminal designed for pets. It integrates 4G all-network wireless communication technology and GPS/BDS/Galileo/Glonass satellite navigation and positioning technology, and supports AGPS fast positioning and tracking, synchronous timing. It has functions such as real-time positioning, roll call positioning, low-power alarm, light pet search, sound pet search, activity statistics, etc. Users can switch between three different working modes through App operation to meet various application scenarios. With the global positioning service platform, you can protect your pets anytime and anywhere.
Use multiple positioning combined technologies to achieve global real-time and accurate positioning.
Can check the history of 180 days, such as history report, alarm report, entry/exit the Geo-fence report, etc.
A virtual area set on APP by yourself you'll be informed when your pets crossing its boundary.
Use WiFi intelligent status detection power saving algorithm to achieve ultra-long battery life of the device.
Remote operate the device start flashinglights and ringing for quickly find your pet.
Quickly and easily upgrading firmwareremotely.
GNSS
| Positioning Mode | GPS，GLONASS，Galileo，BDS，QZSS，AGPS，WIFI，LBS |
| Positioning Band | L1C/A ,B1l,G1,E1B/C,L1C/A |
| Positioning Precision | <10m |
| Tracking Sensitivity | -165dBm |
| Capturing Sensitivity | -149dBm |
| Positioning Time |
Avg.hot start ≤15s Avg.cold start ≤60s |
| Antenna Dimensions |
18.4mmx18.4mmx2mm |
Communication
|
Communication Standard
|
LTE Cat1 |
|
Communication Frequency
|
EU-Version: LTE-TDD/LTE-FDD 4G: B1/B2/B3/B4/B5/B7/B8/B20/B28/B41/B66 |
|
Max Output Power
|
LTE FDD:23±2dBm LTE TDD:23±2dBm |
Operating
| Operating Voltage | 3.1V-4.3V DC |
|
Operating Current
|
23mA |
|
Standby Current
|
1.2mA |
|
Battery
|
800 mAh (3.7V) |
|
Memory Capacity
|
2MB+4MB |
|
LED Indication
|
GPS (Blue), GSM (Yellow), Power (Red), Power on & Pet Search (White) |
|
Card Slot
|
Nano SIM |
Physical
| Dimensions |
64 × 29 × 18.5 mm |
|
Weight
|
32g |
Environment
|
Operating Temperature
|
-25℃~+75℃ |
|
Operating humidity
|
10%～85%RH |
|
Protection Rating
|
IP67 |
