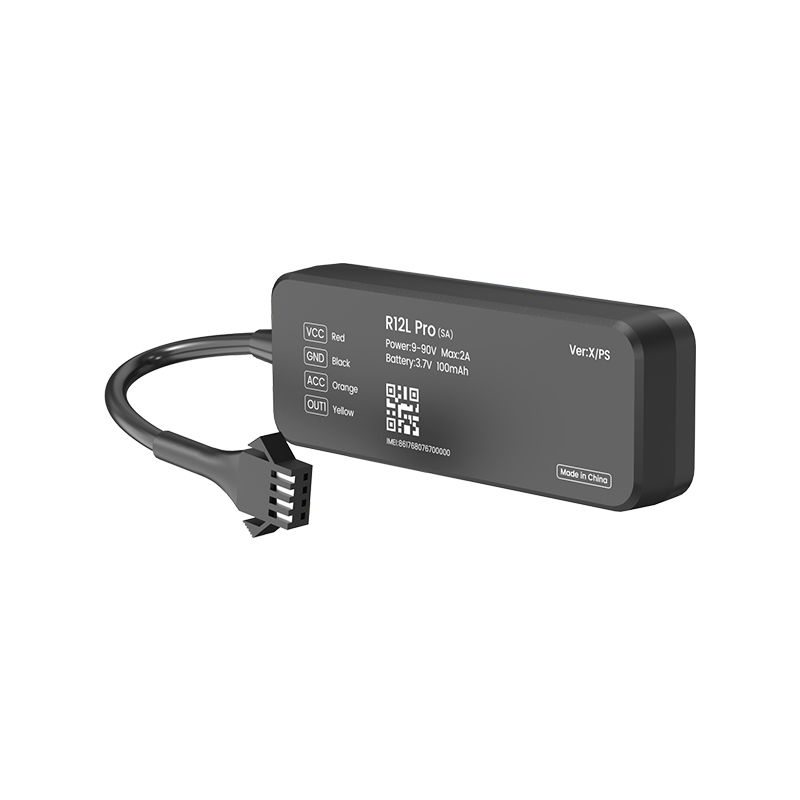

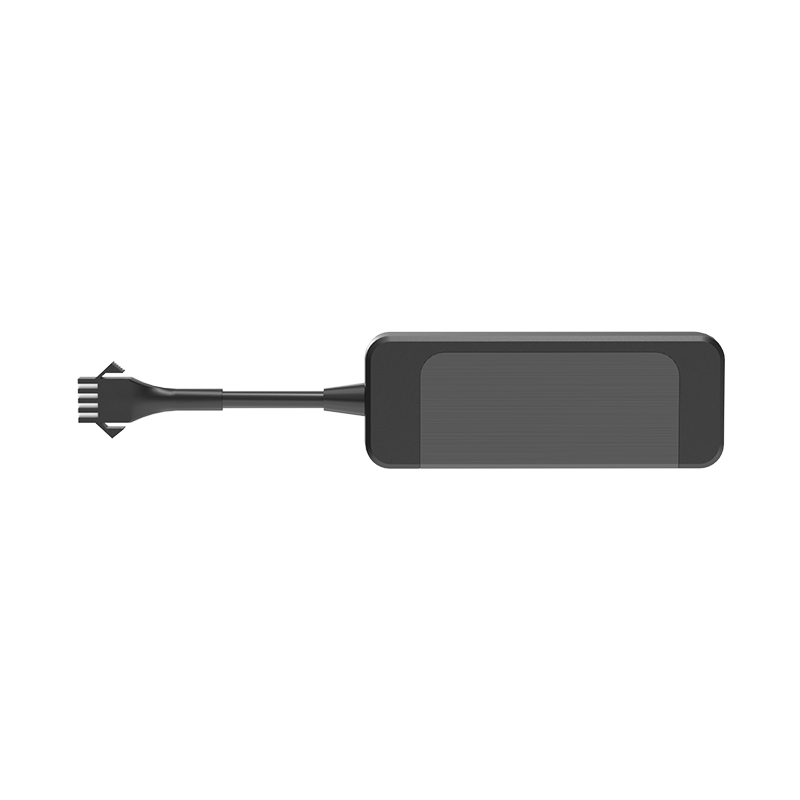

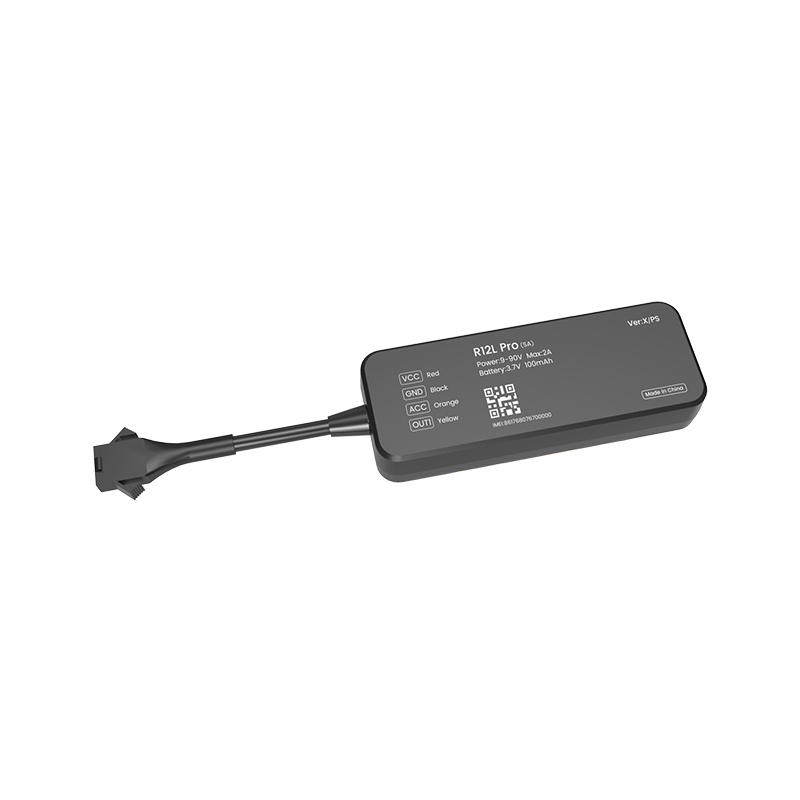

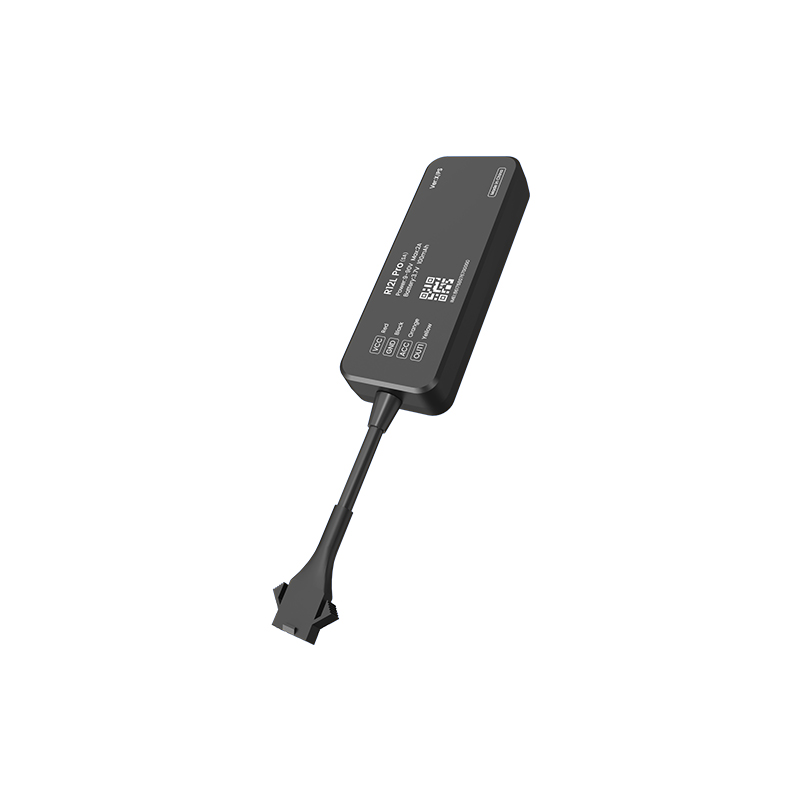

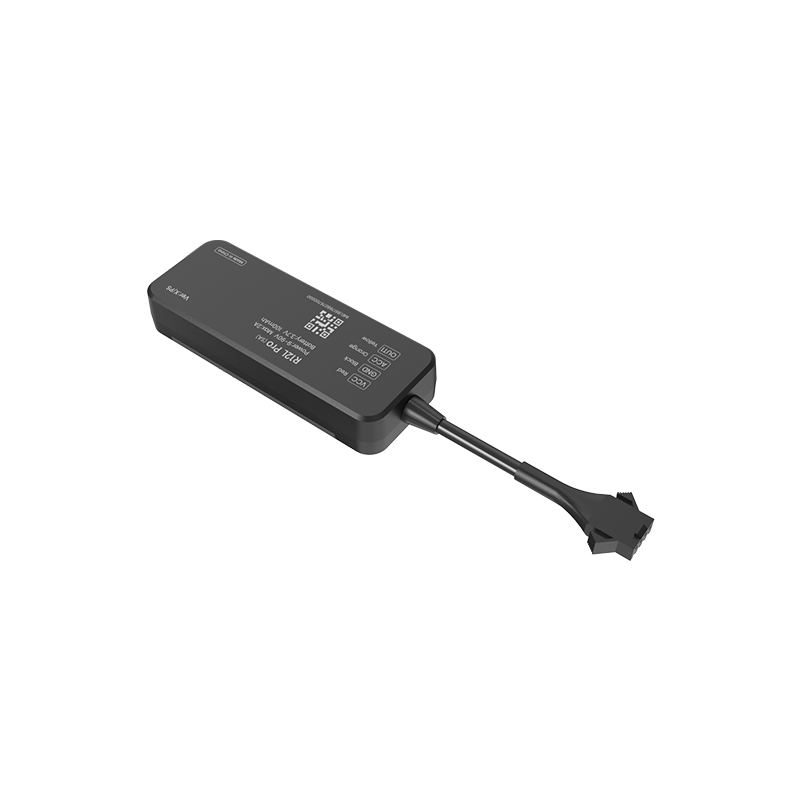

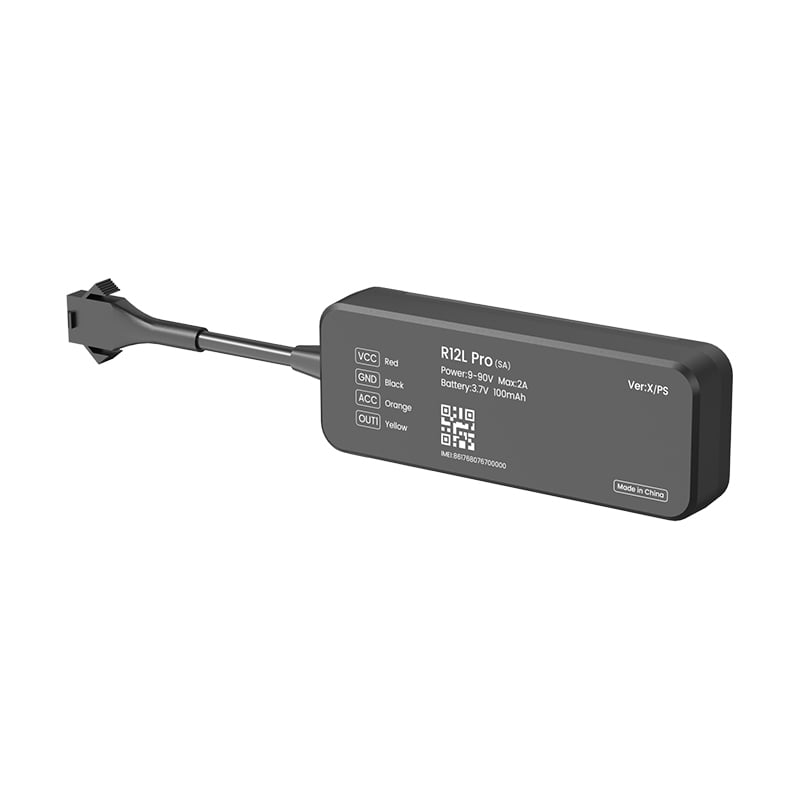

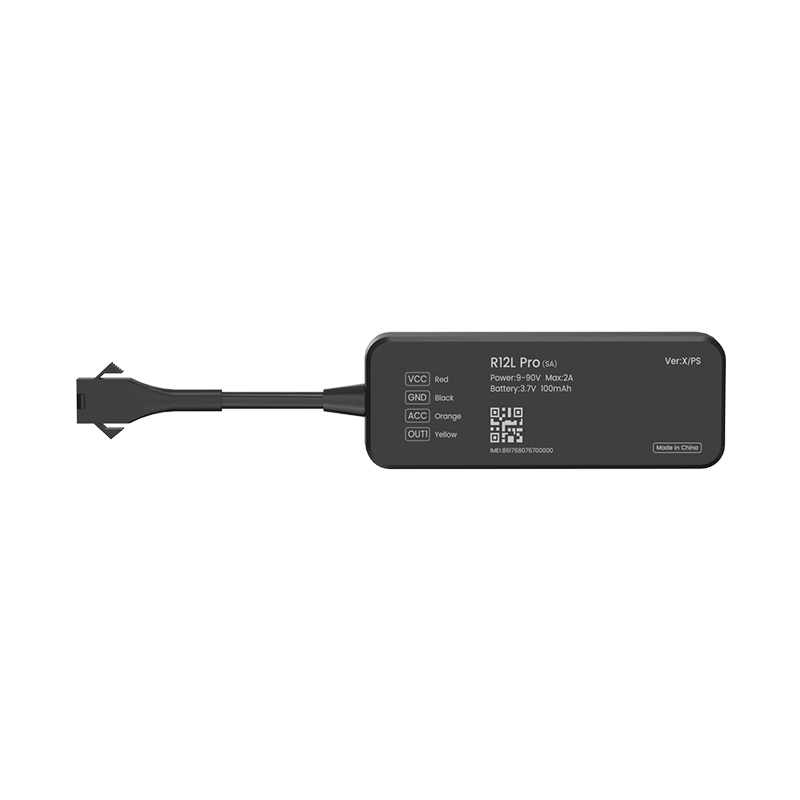

R12L Pro X is a neutral, universal 4G vehicle tracker that supports BDS/GPS/GLONASS positioning technology. It integrates functions such as driving behavior monitoring and multiple abnormal alarms, and can upload information to the management platform in a timely manner. It is widely applicable to industries such as car rental, fleet management, personal vehicle management, motorcycles and electric vehicles.
Possibly prevent vehicle accidents.
Instant alerts for atypical events such as abnormal vibration, speeding, power-off, geo-fence in/out.
Constantly detect the ACC/ignition status of the vehicle.
4G Cat.1, stable, efficient and convenient communication.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Quickly and easily upgrading firmware remotely.
GNSS
| Positioning Mode | BDS,GPS,GLONASS |
| Positioning Band | L1,B1 |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Capturing Sensitivity | -148dBm |
| Positioning Time | Avg.hot start <1sAvg.cold start <32s |
Communication
| Communication Standard | LTE Cat1 / LTE Cat1 + GSM |
| Communication Frequency | LTE Cat1: EU-Version: LTE-FDD: B1/B3/B5/B7/B8/B20 CN-Version: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 LTE Cat1 + GSM: LA-Version: LTE-FDD: B1/B3/B7/B8/B28/B66 GSM:850/900/1800/1900 MHz EU-Version: LTE-FDD: B1/B3/B5/B7/B8/B20 GSM:850/900/1800/1900 MHzCN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM:900/1800 MHz(optional) |
| Max Output Power | FDD:23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm; |
Operating
| Operating Voltage | 9-90V DC |
| Operating Current | ≈52mA |
| Standby Current | ≈3.8mA |
| Battery | 100mAh |
| Memory Capacity | LTE Cat1: 2MB+2MB LTE Cat1 + GSM: 8MB+8MB |
| LED Indication | GPS(Blue),GSM(Green),Power(Red) |
| Card Slot | Micro-SIM |
Physical
| Dimensions | 85 × 32 × 16mm |
| Weight | 36g |
| Environment | |
| Operating Temperature | -20℃~+75℃ |
| Operating humidity | 10%～80%RH |
