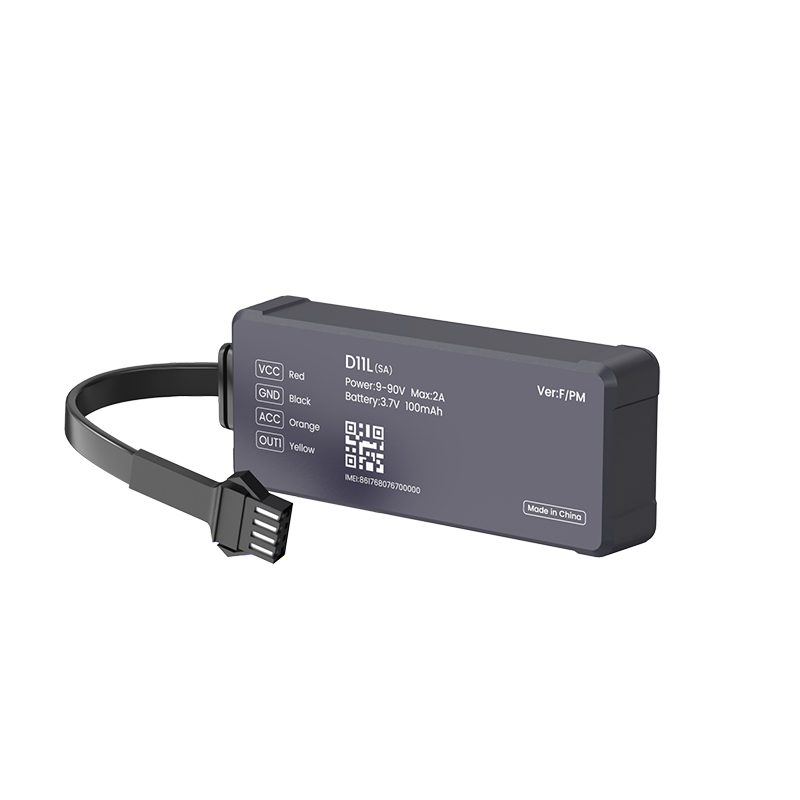

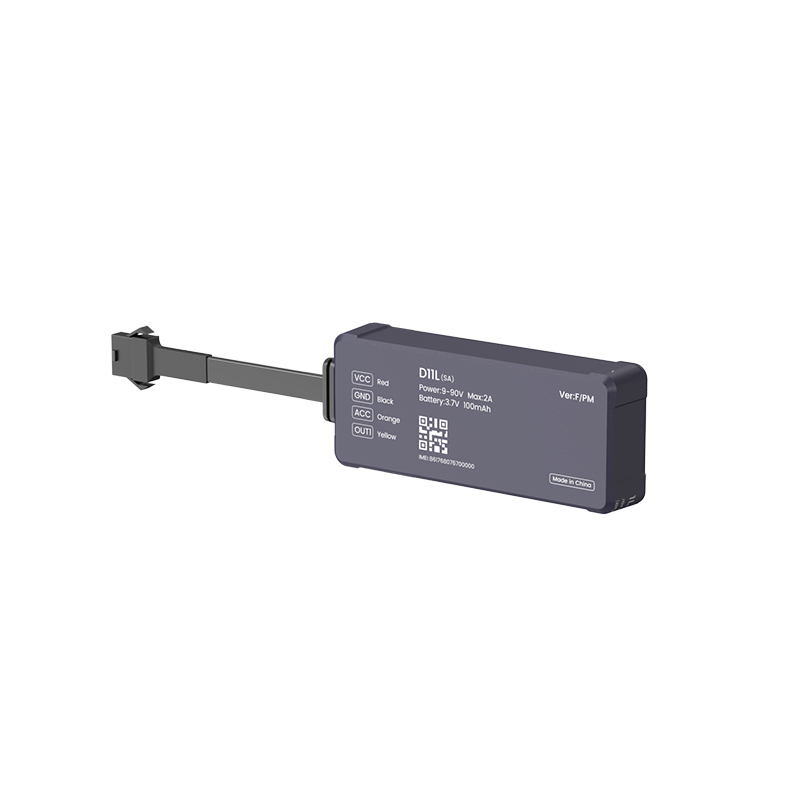

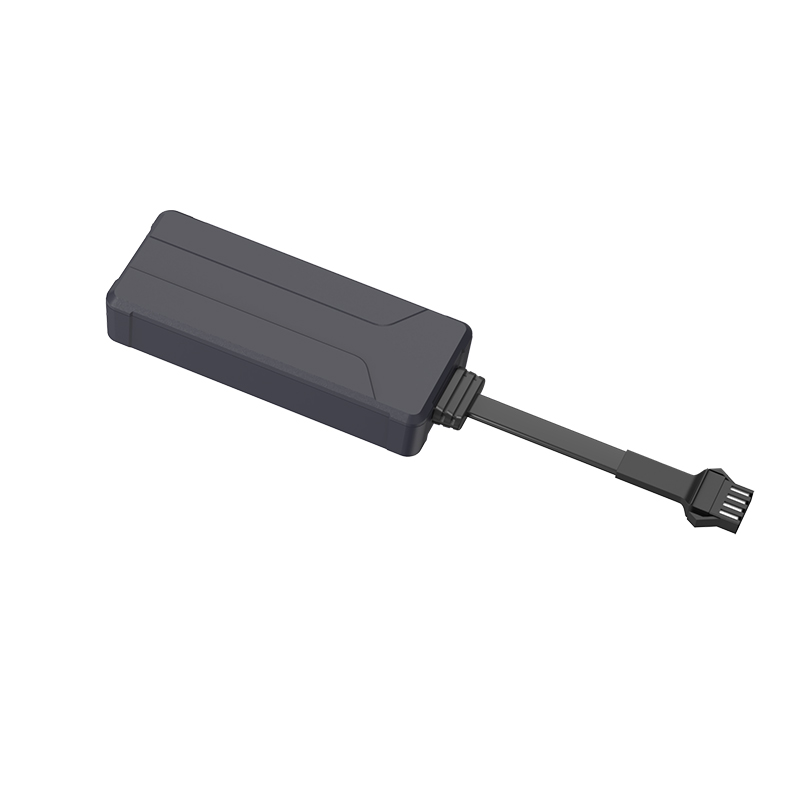

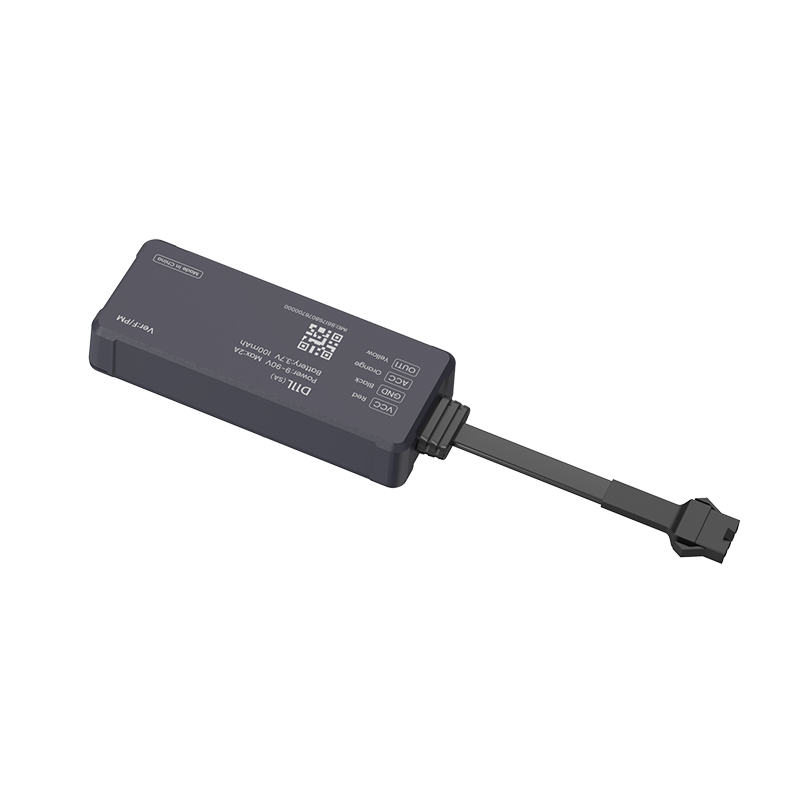

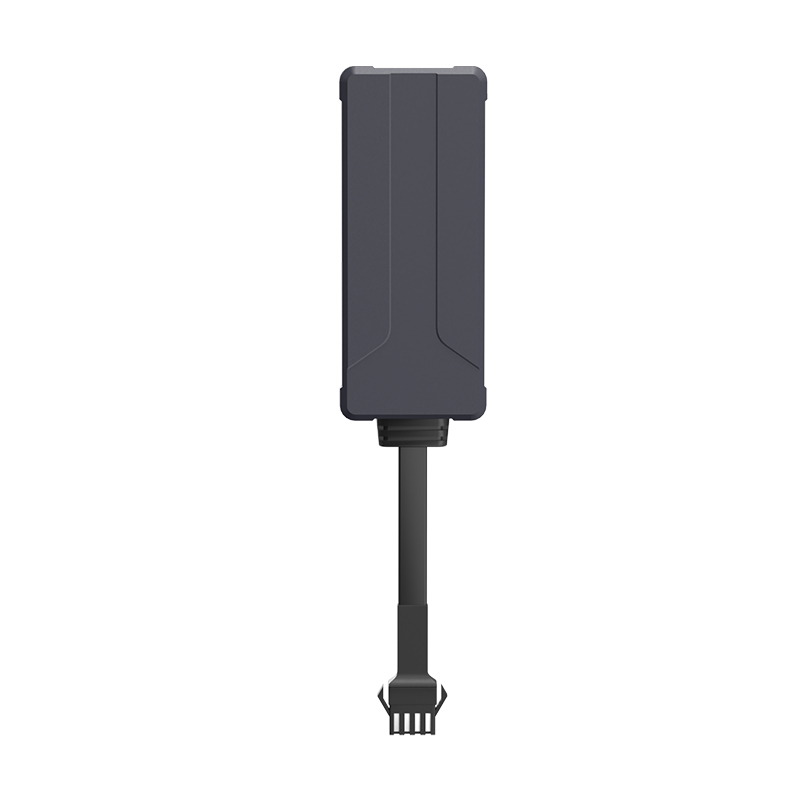

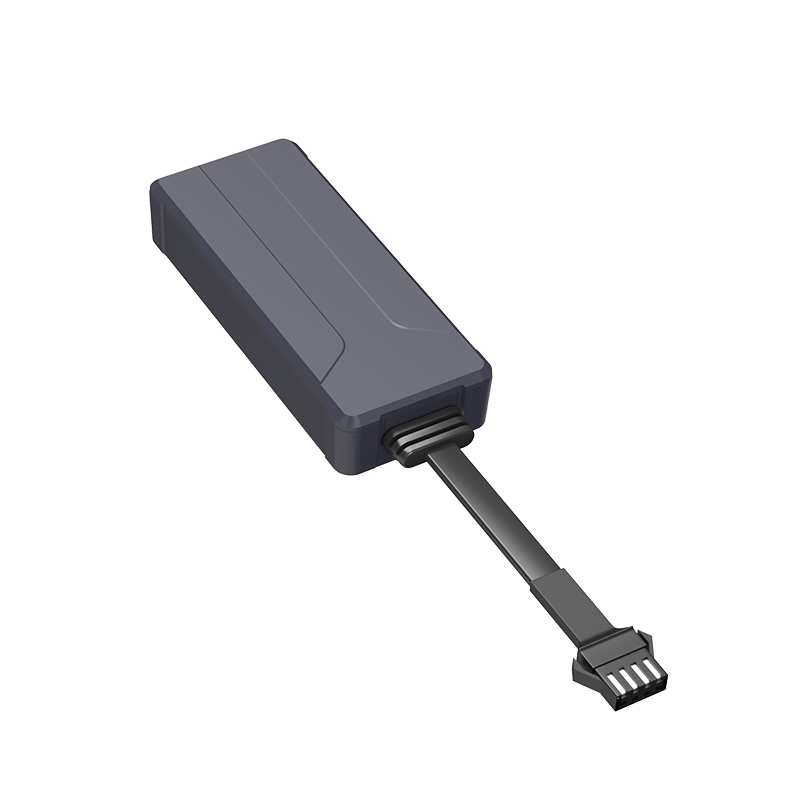

D11L is a universal 4G vehicle tracker that supports BDS/GPS/GLONASS positioning, realizes microsecond positioning and low-latency return, 10+ alarm mechanism to protect vehicles, and can be widely used in car loans, logistics, and electric vehicle and other industries.
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Constantly detect the ACC/ignition status of the vehicle.
Quickly and easily upgrading firmware remotely.
The GPS module provides precise real-time location data of en-route fleet vehicles as well as cargoes.
Can check the history of 180 days, such as history report, alarm report, entry/exit the Geo-fence report, etc.
With built-in vibration sensor, an alarm will be sent immediately when the vehicle has abnormal vibration.
GNSS
|
Positioning Mode |
GPS, BDS, GLONASS |
|
Positioning Band |
L1, B1 |
|
Positioning Precision |
<2.5m CEP |
|
Tracking Sensitivity |
-162dBm |
|
Capturing Sensitivity |
-148dBm |
|
Positioning Time |
Avg.hot start <1sAvg.cold start <32s |
|
Antenna Dimensions |
|
Communication
|
Communication Standard |
LTE Cat1 |
|
Communication Frequency |
EU-Version: LTE-FDD B1/B3/B5/B7/B8/B20 /B28 LA-Version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 CN-Version: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 |
|
Max Output Power |
FDD:23dBm±2dBm TDD: 23dBm±2dBm GSM: 30dBm±2dBm;33土2dBm; |
Operating
|
Operating Voltage |
9-95V DC |
|
Operating Current |
60mA |
|
Standby Current |
8mA |
|
Battery |
100mAh |
|
Memory Capacity |
4G+2G:8MB+8MB Pure 4G: 4MB+4MB |
|
LED Indication |
GPS(Blue), GSM(Yellow), Power(Red) |
|
Card Slot |
Micro-SIM |
Physical
|
Dimensions |
79×33×16 mm |
|
Environment |
|
|
Operating Temperature |
-20℃~+75℃ |
|
Operating humidity |
10%～80%RH |
